OneBoard Micro LED
OneBoard S
Micro LED
OneBoard R
Micro LED
Screen size │ 135" 162"4K 216"4K
Pixel pitch │ p1.5 p0.9 p1.2
Application │ Classroom Hotel Conference-Room
600 nit
Brightness
110 kg
Weight
178
Viewing Angle
100,000 hours
Life Span
600 nit
Brightness
110 kg
Weight
178
Viewing Angle
100,000 hours
Life Span
Cutting-edge next-gen
Standalone Micro LEDs
Experience true black screens with deep contrast and realism with 5th generation Micro LEDs.
DualCoat
Strong durability without deformation
DualCoat is a high-quality double coat that resists temperature changes and protects against scratches and UV fading.
DualCoat
General Products
Zero Failure Rate
Simpleboard

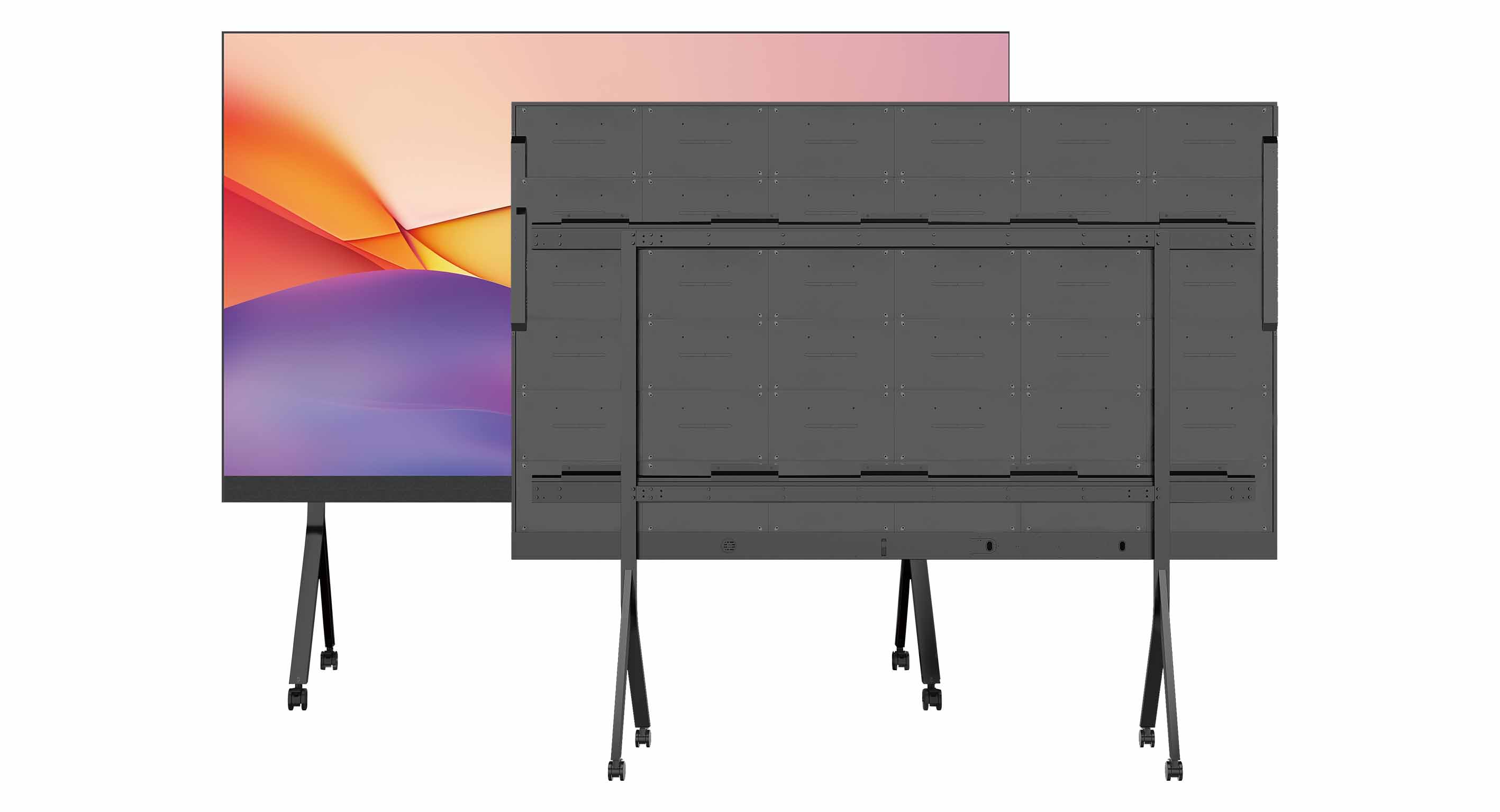

The Simple Board is a cable-free, integrated design,
Low failure frequency, power efficient and heat free.
SimpleBoard
General Products
12,000:1
HyCon™, bright even
Unparalleled contrast

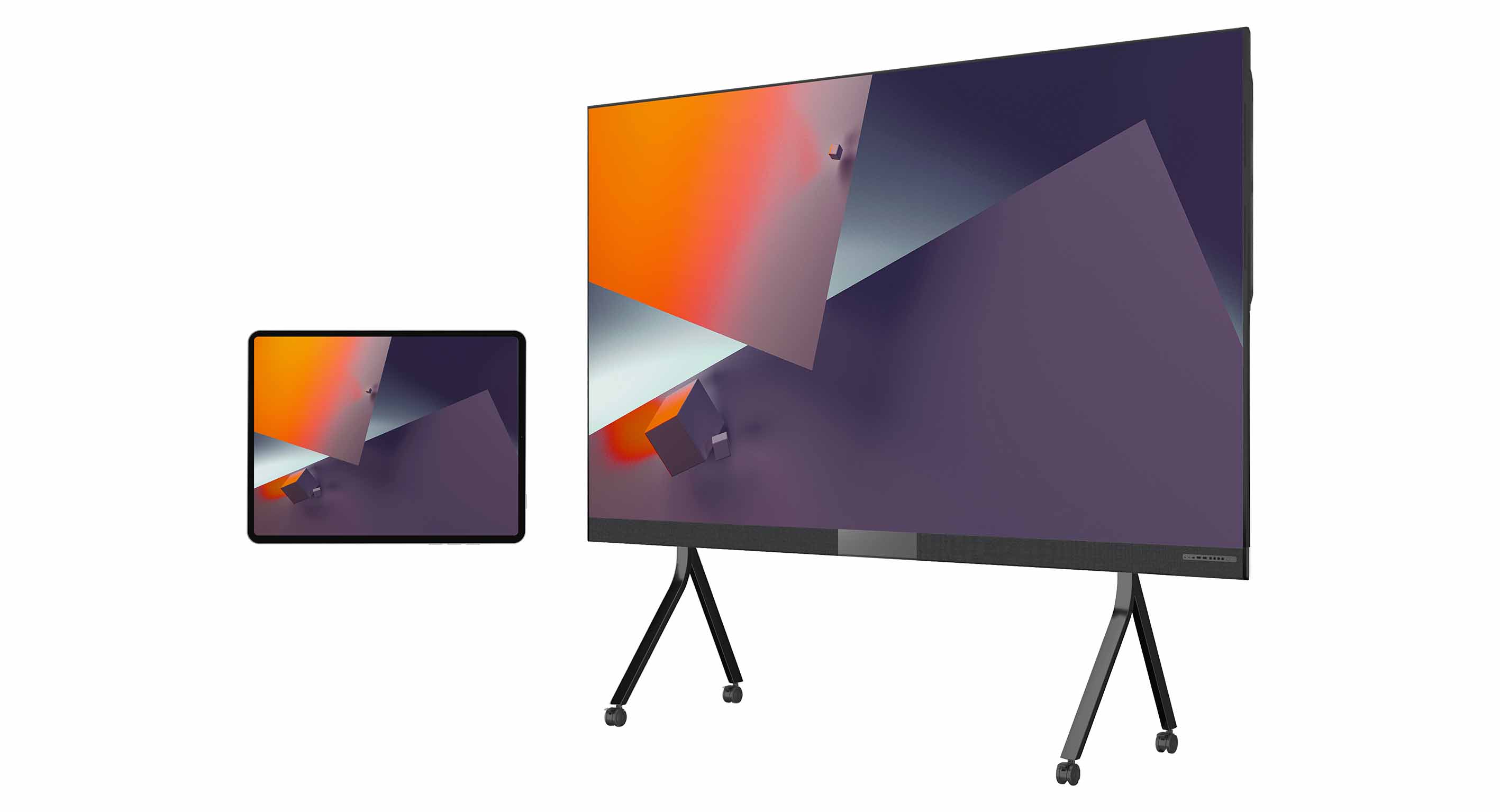

The OneBoard S Micro LED delivers vibrant content with 12,000:1 contrast ratio and 1.5x higher brightness.
OneBoard S Micro LED
General Products
Dedicated OS on board
Next-generation OS on board
All New AIO
The Android 13-based system delivers an optimal user experience with improved performance, stability, and an intuitive interface.
OneBoard S Micro LED
Specification
| Product | OneBoard S Micro LED 135" FHD | OneBoard S Micro LED 162" 4K | OneBoard S Micro LED 216" 4K |
|---|---|---|---|
| Pixel pitch | 1.562 mm | 0.9375 mm | 1.25 mm |
| Brightness | 600 nit | 600 nit | 600 nit |
| Screen size | 135" | 162" | 216" |
| Screen dimension | 3,000 x 1,687.5 mm | 3,600 × 2,025mm | 4,800 × 2,700mm |
| Overall dimension | 3,030.8 x 1,812.9 mm | 3,630.8 × 2,150.4mm | 4,830.8 × 2,825.4mm |
| Screen resolution | 1,920 x 1,080 px | 3,840 x 2,160 px | 3,840 x 2,160 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 178° (H, V) | 178° (H, V) | 178° (H, V) |
| Weight | 110 kg | 155 kg | 285 kg |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front |
| Power consumption | Max. 1.46│Avg. 0.483 kw/h | Max. 2.154│Avg. 0.647 kw/h | Max. 3.858│Avg. 1.158 kw/h |
| Input voltage | AC 100V - 240V, 50/60Hz | AC 100V - 240V, 50/60Hz | AC 100V - 240V, 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
| Operating system | Android 13 | Android 13 | Android 13 |
| Video Input | HDMI 2.0 x 1 / HDMI 1.4 x 3 | HDMI 2.0 x 1 / HDMI 1.4 x 3 | HDMI 2.0 x 1 / HDMI 1.4 x 3 |
| Video output | HDMI OUT 2.0 x 1 | HDMI OUT 2.0 x 1 | HDMI OUT 2.0 x 1 |
| Lan | Lan x 2 | Lan x 2 | Lan x 2 |
| Product | OneBoard S Micro LED 135" FHD | OneBoard S Micro LED 162" 4K | OneBoard S Micro LED 216" 4K |
|---|---|---|---|
| Pixel pitch | 1.562 mm | 0.9375 mm | 1.25 mm |
| Brightness | 600 nit | 600 nit | 600 nit |
| Screen size | 135" | 162" | 216" |
| Screen dimension | 3,000 x 1,687.5 mm | 3,600 × 2,025mm | 4,800 × 2,700mm |
| Overall dimension | 3,030.8 x 1,812.9 mm | 3,630.8 × 2,150.4mm | 4,830.8 × 2,825.4mm |
| Screen resolution | 1,920 x 1,080 px | 3,840 x 2,160 px | 3,840 x 2,160 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 178° (H, V) | 178° (H, V) | 178° (H, V) |
| Weight | 110 kg | 155 kg | 285 kg |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front |
| Power consumption | Max. 1.46│Avg. 0.483 kw/h | Max. 2.154│Avg. 0.647 kw/h | Max. 3.858│Avg. 1.158 kw/h |
| Input voltage | AC 100V - 240V, 50/60Hz | AC 100V - 240V, 50/60Hz | AC 100V - 240V, 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
| Operating system | Android 13 | Android 13 | Android 13 |
| Video Input | HDMI 2.0 x 1 / HDMI 1.4 x 3 | HDMI 2.0 x 1 / HDMI 1.4 x 3 | HDMI 2.0 x 1 / HDMI 1.4 x 3 |
| Video output | HDMI OUT 2.0 x 1 | HDMI OUT 2.0 x 1 | HDMI OUT 2.0 x 1 |
| Lan | Lan x 2 | Lan x 2 | Lan x 2 |
All products are customizable, so please contact us if you would like to change the specs.
Installation examples
Hallim Yongin CC - Golf Course
- Product: OneBoard R Micro LED
- Screen Size: 135"
- Pixel Pitch: 1.5 mm
