OneBoard
OneBoard Fold
OneBoard Fold
Screen size │ 110" 138"
Pixel pitch │ p1.2 p1.5
Application │ Hotel Meeting Rooms Classrooms
550 nit
Brightness
160
Viewing angle
3,840 Hz
Refresh rate
100,000 hours
Life span
550 nit
Brightness
160
Viewing angle
3,840 Hz
Refresh rate
100,000 hours
Life span

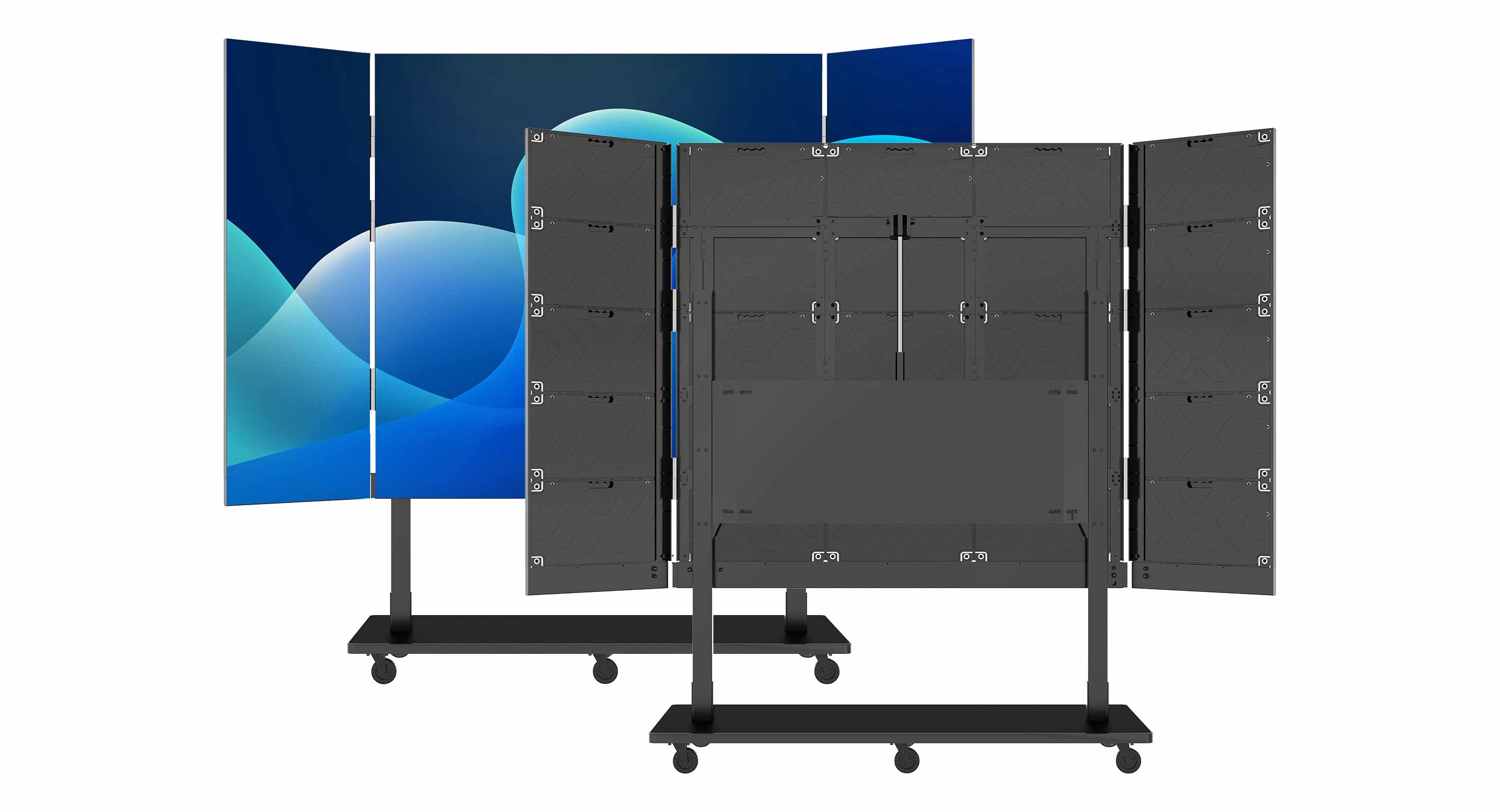

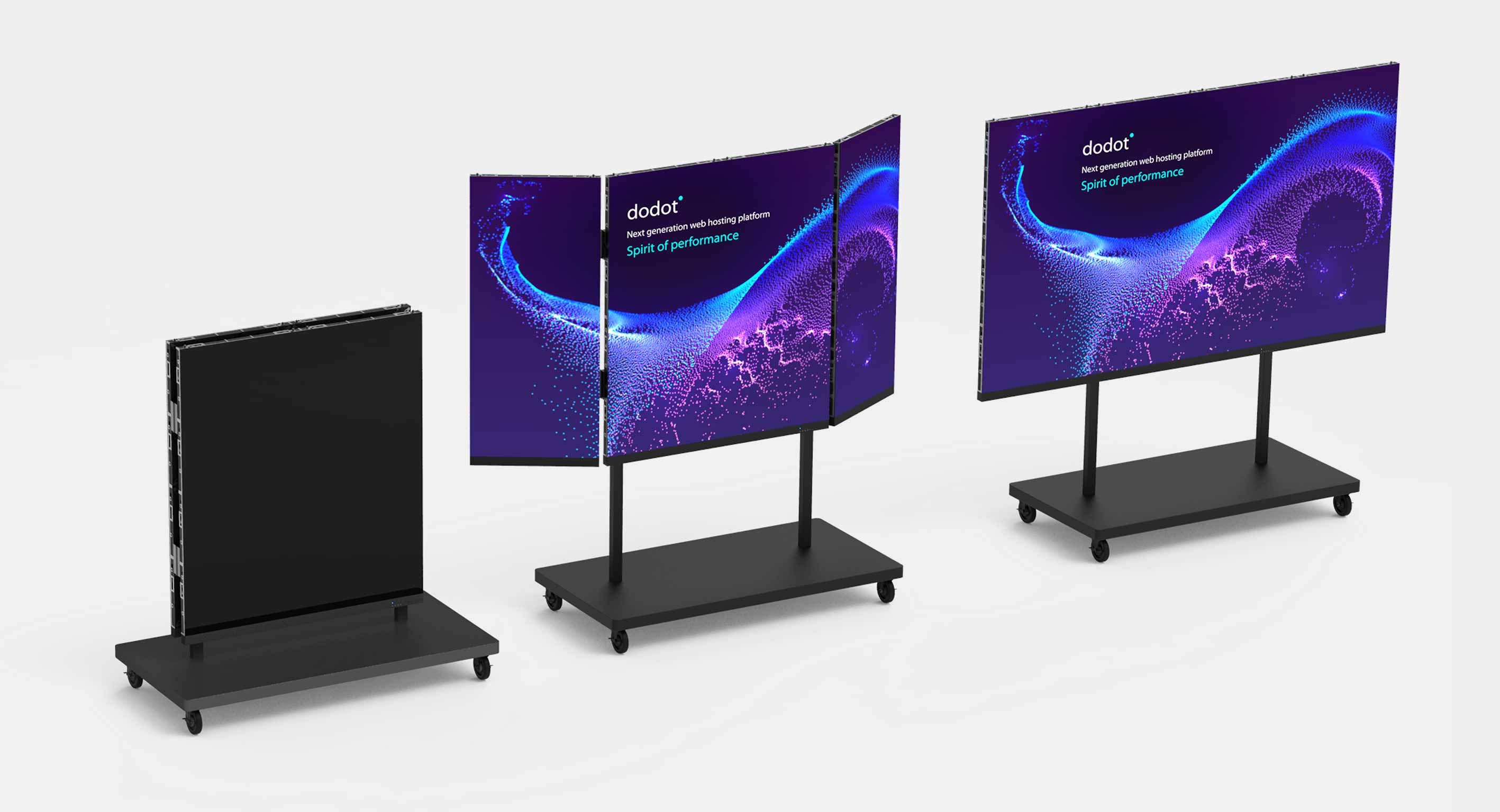

Maximize space utilization
Foldable LED screens
The low profile makes it easy to maneuver through low doors, and even when folded, it displays like a short banner.
DualCoat
Strong durability without deformation
DualCoat is a high-quality double coat that resists temperature changes and protects against scratches and UV fading.
DualCoat
General Products
Zero Failure Rate
Simpleboard
The Simple Board is a cable-free, integrated design,
Low failure frequency, power efficient and heat free.
SimpleBoard
General Products
160°
High Viewing
angle performance
A high viewing angle of 160° allows you to enjoy content from any location.
Ultra-light, ultra-slim
World firsts

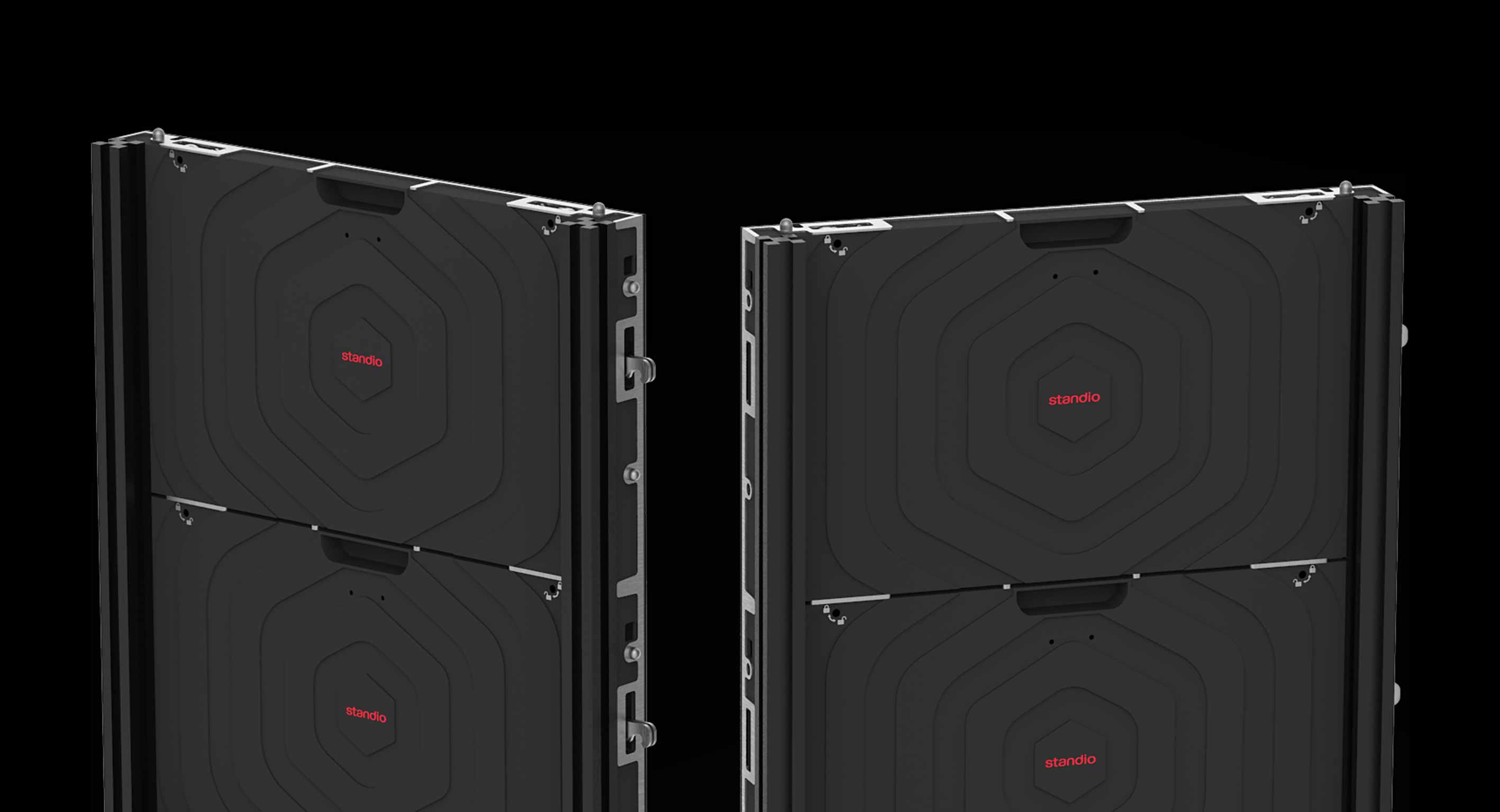

Aluminum die-cast panels
The aluminum-only panel is lightweight and thin. The panel is only 39 mm thick and is extremely precise.

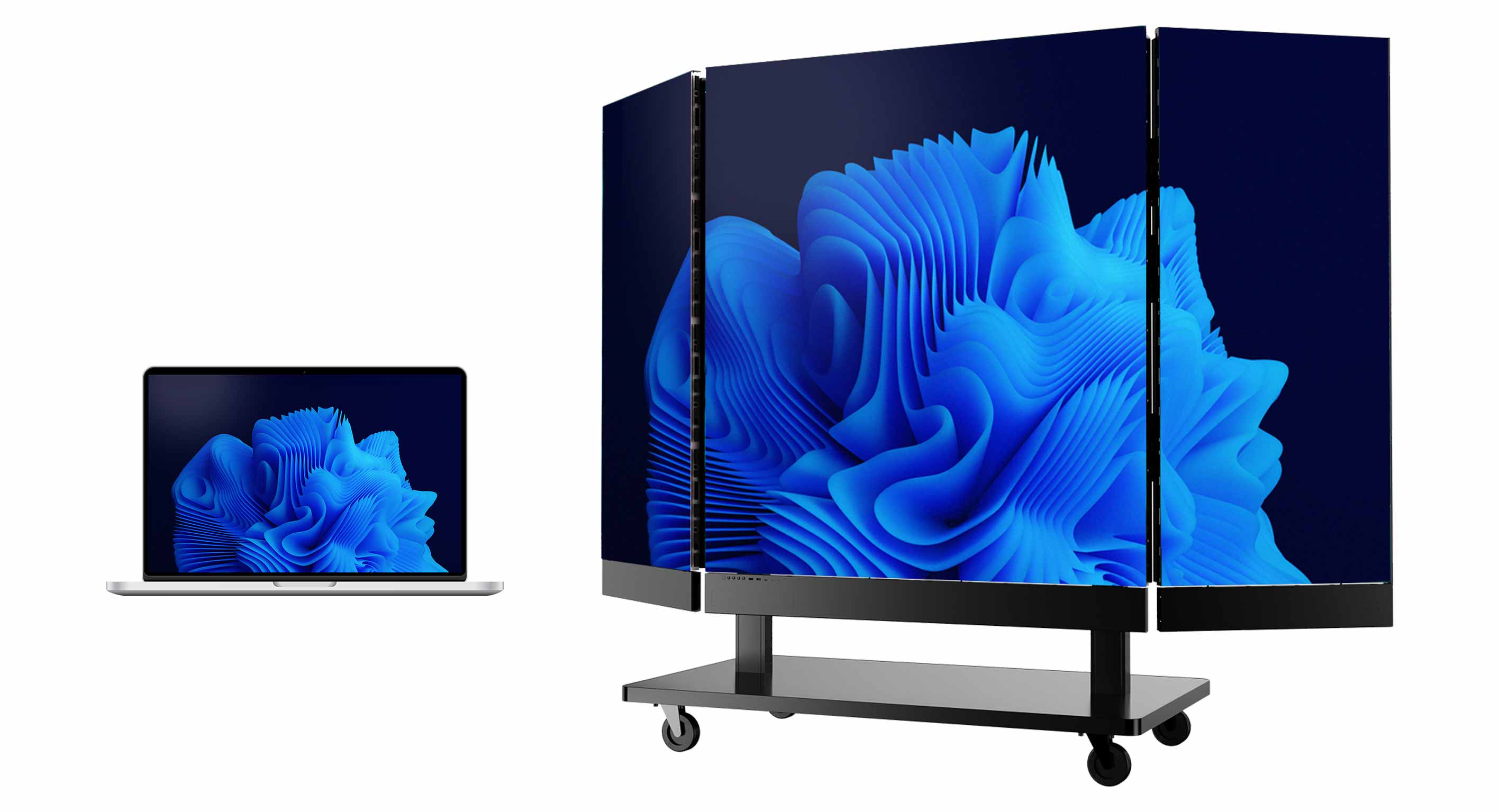

Compatibility
Supports mirroring for wireless
multi-device connection
Compatible with any device for easy PC, mobile cloud conferencing, and more.
Zero Failure Rate
Patented
Module Precision Attachment System
Patented, precise attachment provides high flatness and sharpness.

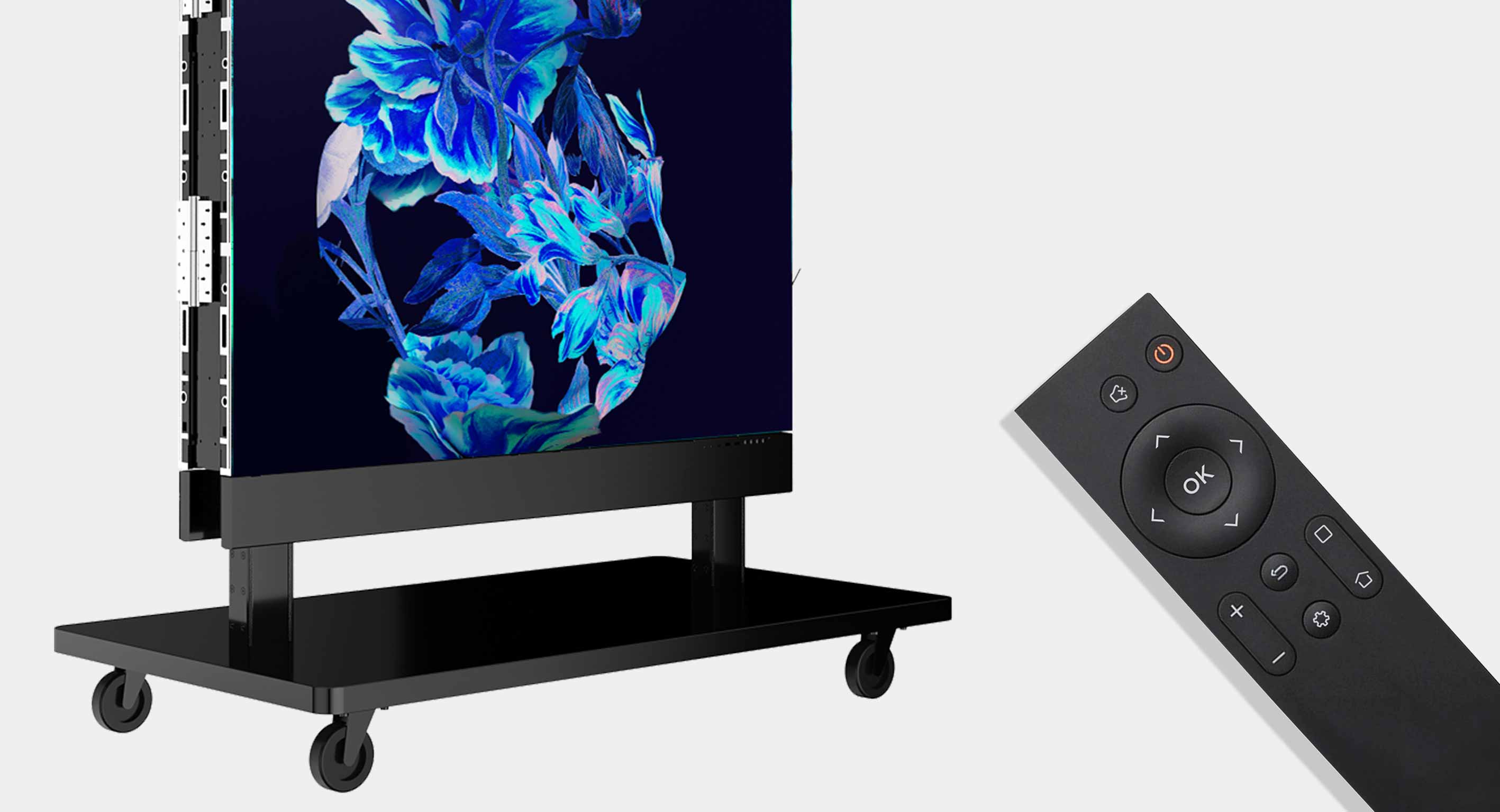

Controls
Convenient
Remote control control
With the remote control, you can adjust brightness, switch signals, volume, select menus, enter standby mode, control file playback, and more.
Zero Failure Rate
Patented
Module Precision Attachment System
Patented, precise attachment provides high flatness and sharpness.
Controls
Convenient
Remote control control
With the remote control, you can adjust brightness, switch signals, volume, select menus, enter standby mode, control file playback, and more.
OneBoard Fold
Specification
| Product | OneBoard Fold 110" | OneBoard Fold 138" |
|---|---|---|
| Pixel pitch | 1.27083 mm | 1.58854 mm |
| Brightness | 550 nit | 550 nit |
| Screen size | 110" | 138" |
| Screen dimension | 2,440 x 1,373 mm | 3,050 x 1,715 mm |
| Overall dimension | 2,453 x 2,317 mm | 3,064 x 2,533 mm |
| Screen resolution | 1,920 x 1,080 px | 1,920 x 1,080 px |
| Screen ratio | 1 | 1 |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) |
| Working temperature | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% |
| Maintenance | Front | Front |
| Power consumption | Max. 1.3│Avg. 0.44 kw/h | Max. 1.87│Avg. 0.63 kw/h |
| Life span | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit |
| Video Input | HDMI 2.0 x 3 | HDMI 2.0 x 3 |
| Product | OneBoard Fold 110" | OneBoard Fold 138" |
|---|---|---|
| Pixel pitch | 1.27083 mm | 1.58854 mm |
| Brightness | 550 nit | 550 nit |
| Screen size | 110" | 138" |
| Screen dimension | 2,440 x 1,373 mm | 3,050 x 1,715 mm |
| Overall dimension | 2,453 x 2,317 mm | 3,064 x 2,533 mm |
| Screen resolution | 1,920 x 1,080 px | 1,920 x 1,080 px |
| Screen ratio | 1 | 1 |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) |
| Working temperature | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% |
| Maintenance | Front | Front |
| Power consumption | Max. 1.3│Avg. 0.44 kw/h | Max. 1.87│Avg. 0.63 kw/h |
| Life span | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit |
| Video Input | HDMI 2.0 x 3 | HDMI 2.0 x 3 |
All products are customizable, so please contact us if you would like to change the specs.
Installation examples
Lotte Hotel - Garnet Suite
- Product: OneBoard Fold
- Screen Size: 138"
- Pixel Pitch: 1.5 mm
