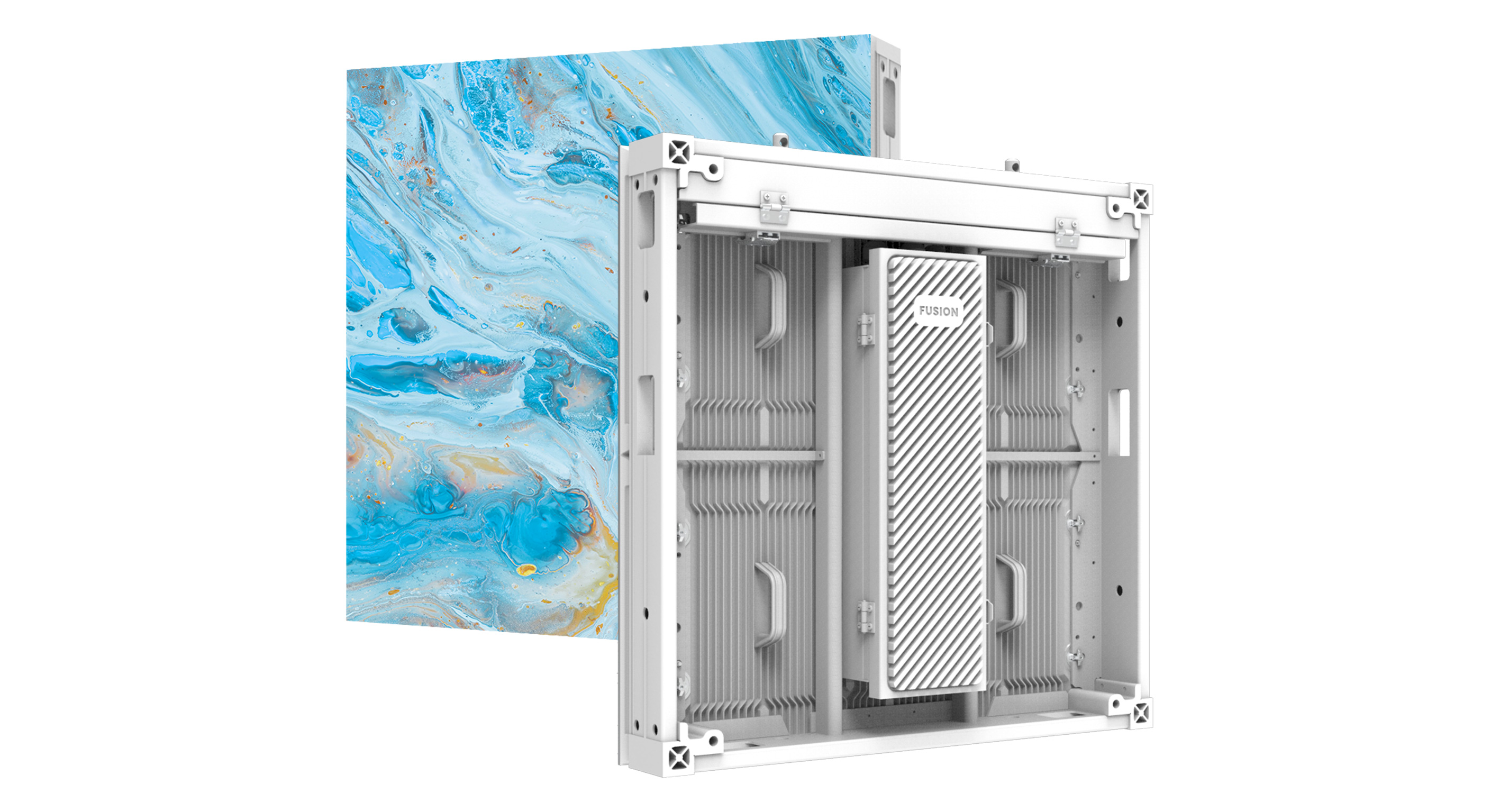

Outdoor Panel
Fusion Fine
Fusion Fine

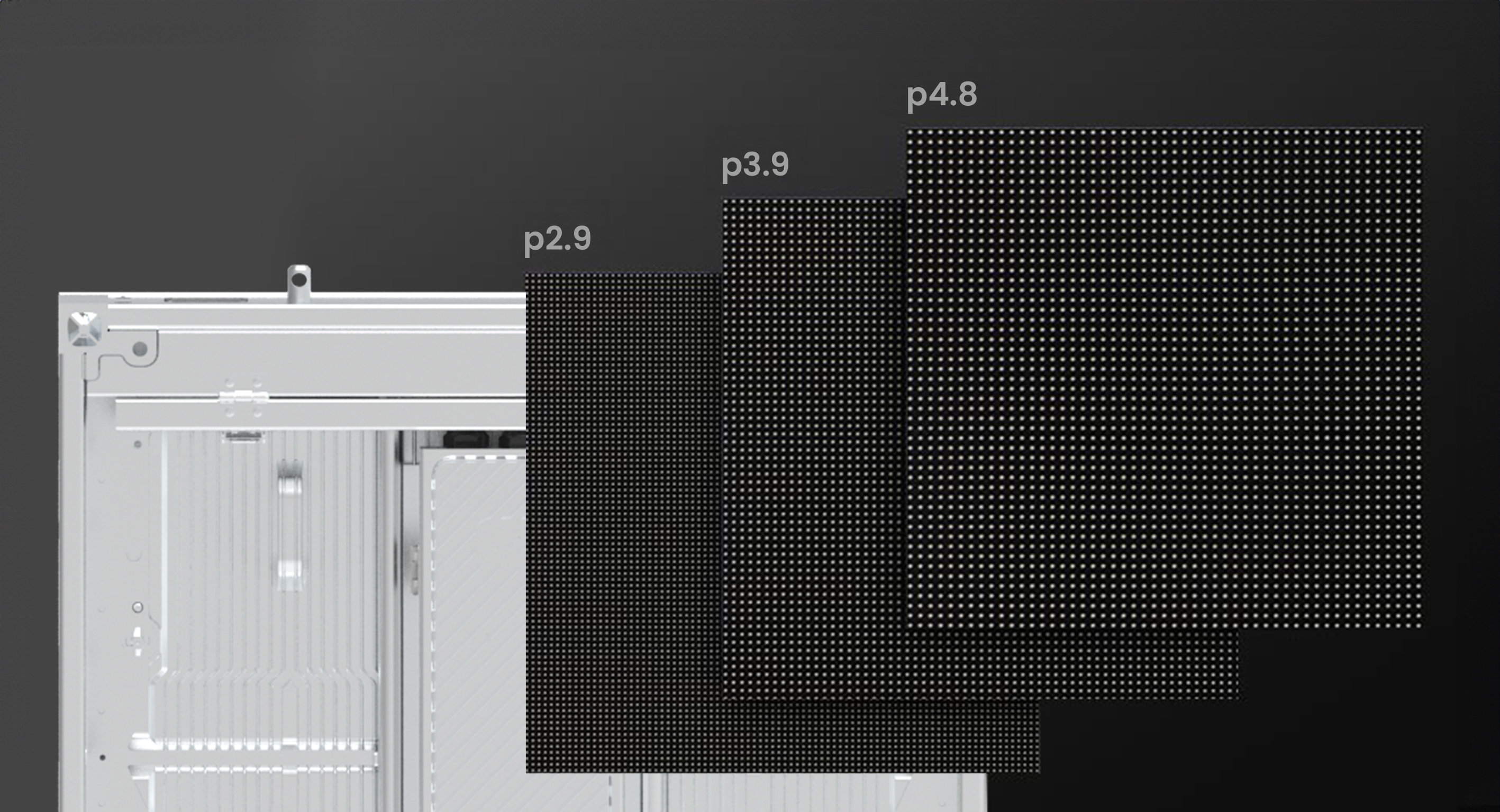

Pixel pitch │ p2.9 p3.9 p4.8
Panel Size │ 500 x 500, 750, 1,000 mm
Application │ Near Field Outdoor Media IP66 Environment
5,000 nit
Brightness (Max)
140
Viewing angle
IP66
IP rating
100,000 hours
Life span
5,000 nit
Brightness (Max)
140
Viewing angle
IP66
IP rating
100,000 hours
Life span
The most advanced
Outdoor Fine Pixel Pitch
While regular steel products make it difficult to remove modules, Fusion Fine's high resolution and superior hardware construction make it easy to manage.
The most advanced
Outdoor Fine Pixel Pitch
Fusin Fine is an excellent product that can be used in different climates without any problems.

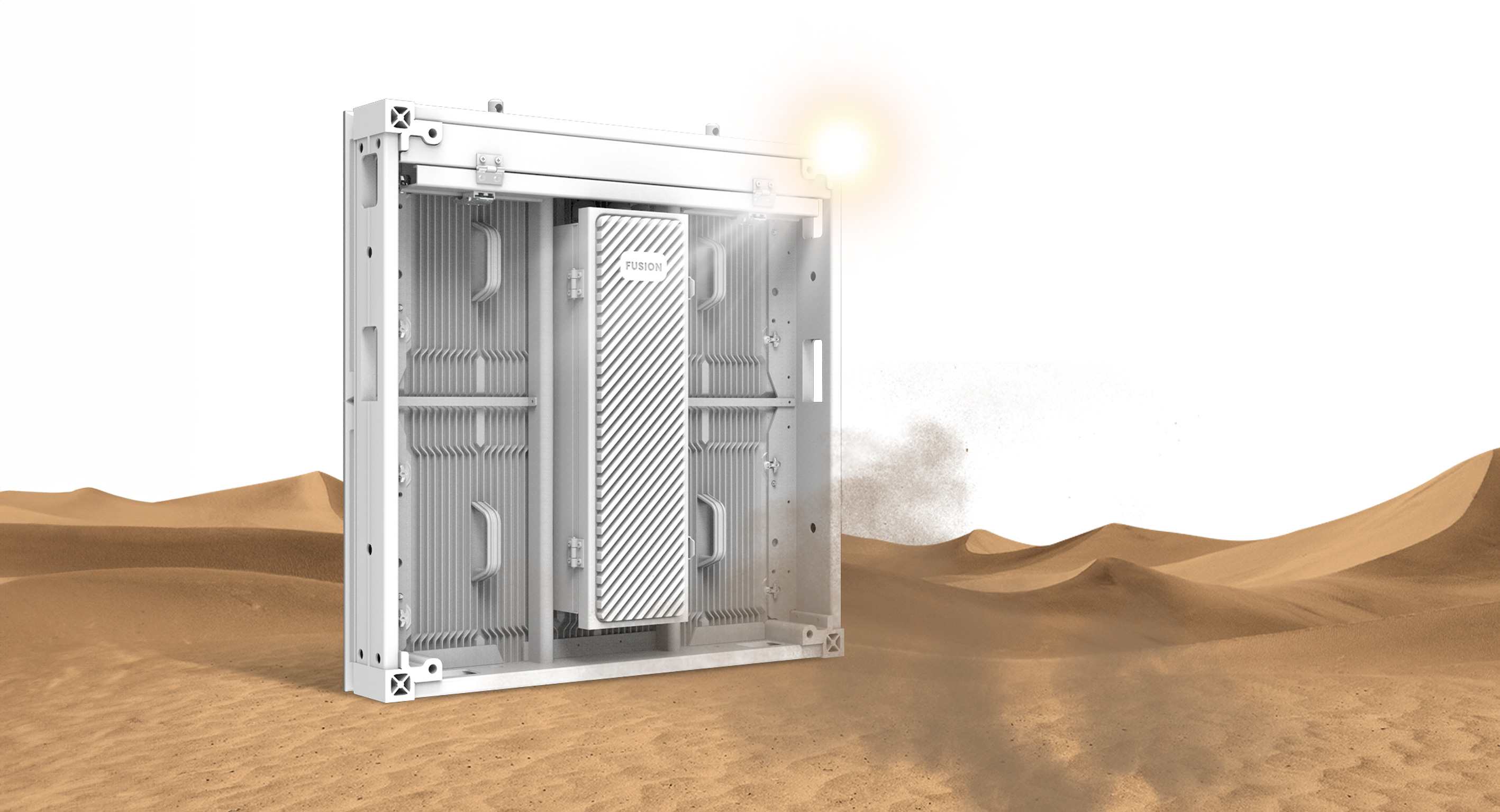

IP66
Not even a penhole
Fully waterproof and dustproof
Designed to be completely sealed against moisture and dust, the
Humid environments,
snowstorms, and more.
3rd Generation Fusion Fine
1st and 2nd Generation Older Products

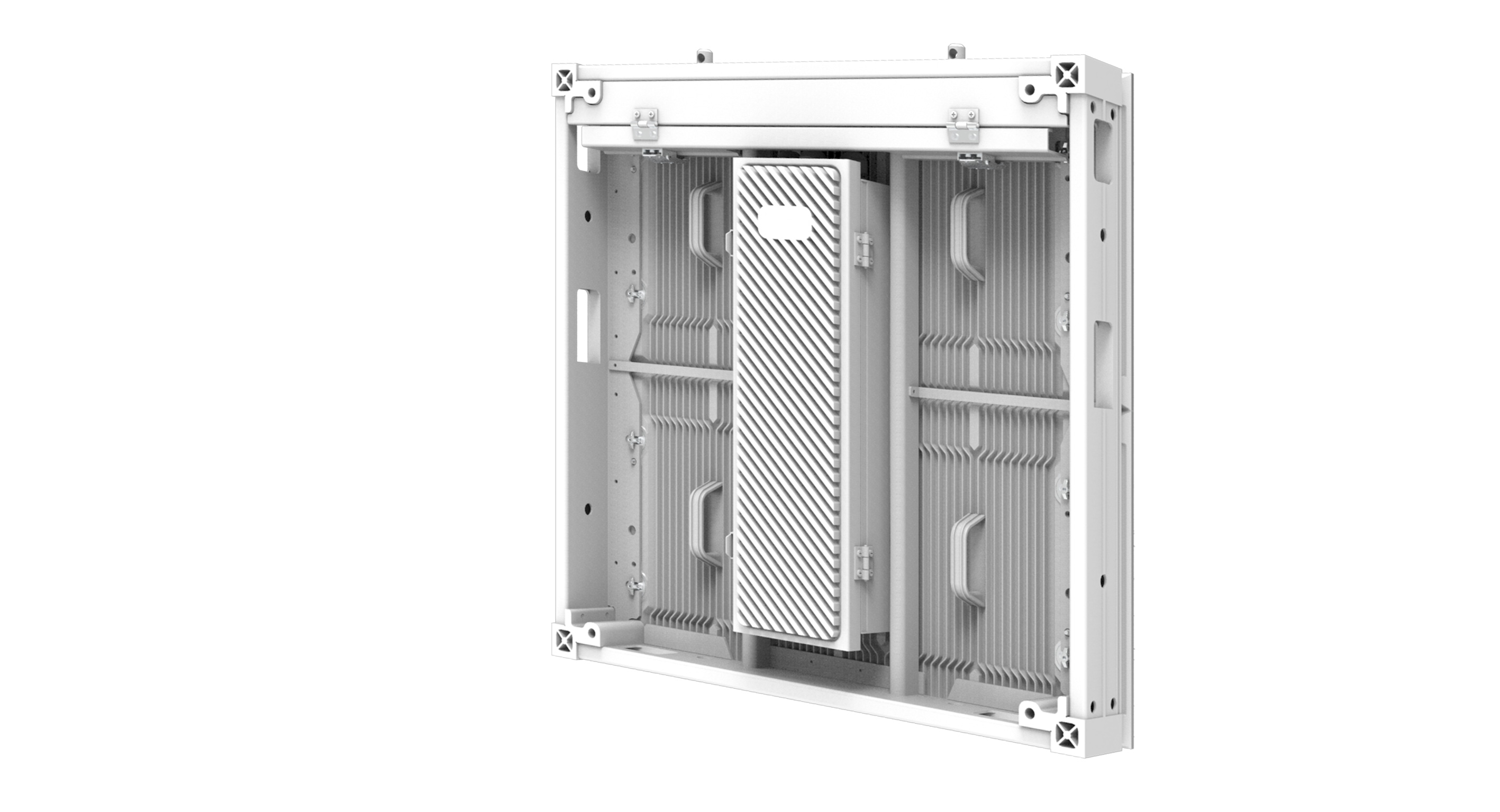

Easy to design and convenient
Bi-directional maintenance
Front and back maintenance choices improve LED display efficiency even in limited spaces.
Fast heat dissipation
Prevent breakdowns and aging
Dual heat dissipation
The white paint enhances light reflection, and the aluminum modules dissipate heat quickly to keep performance stable.

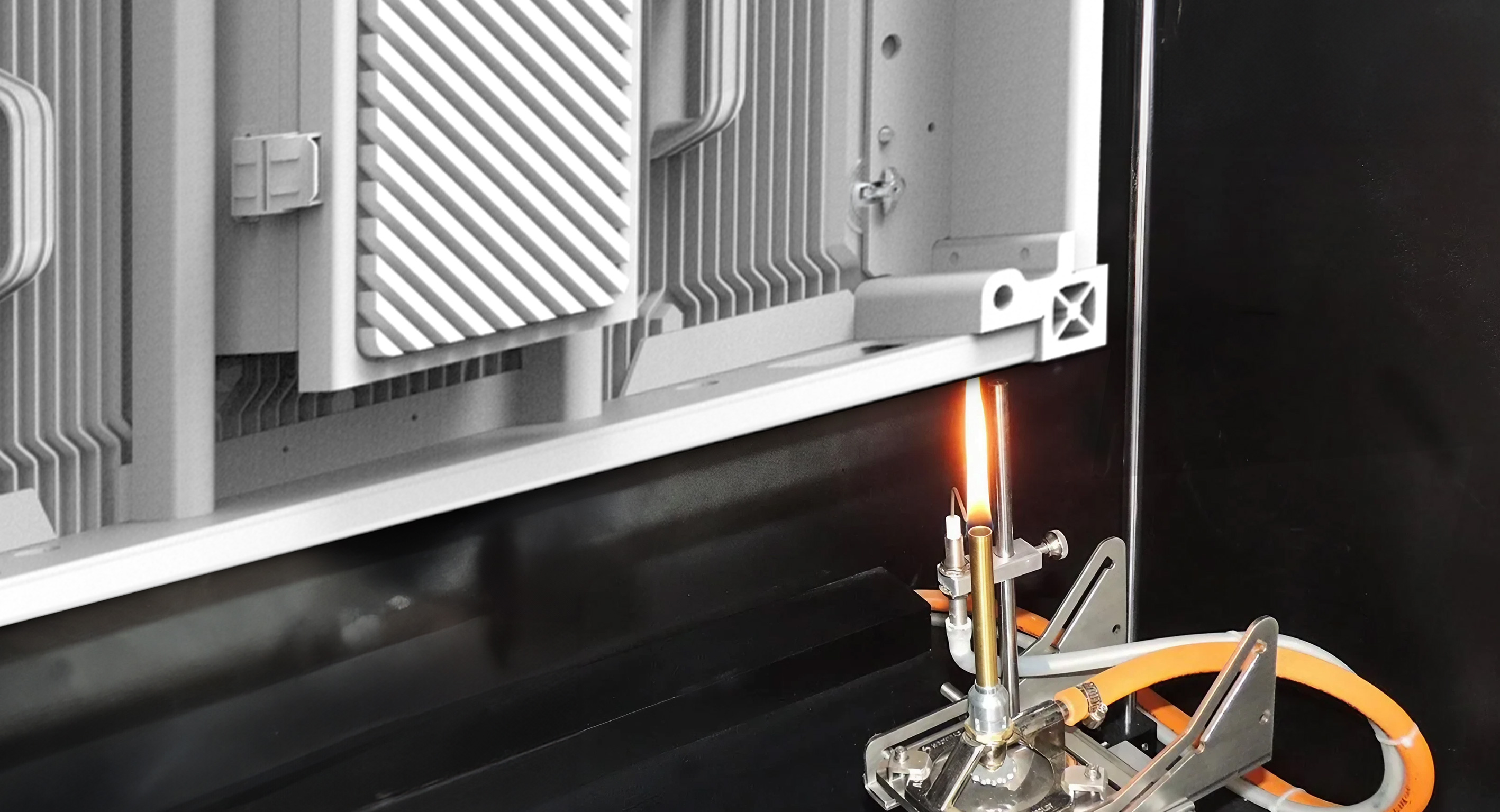

5VB flame retardant rating
In the unlikely event that the
Fire protection
It won't catch fire in the event of a spark or electric leakage, and unlike other products, flame-retardant materials prevent full-screen fires.
Salt-tolerant
Specialty Coatings
Used on offshore structures and ships, this ultra-strong painting technology will never corrode, even in salty environments.

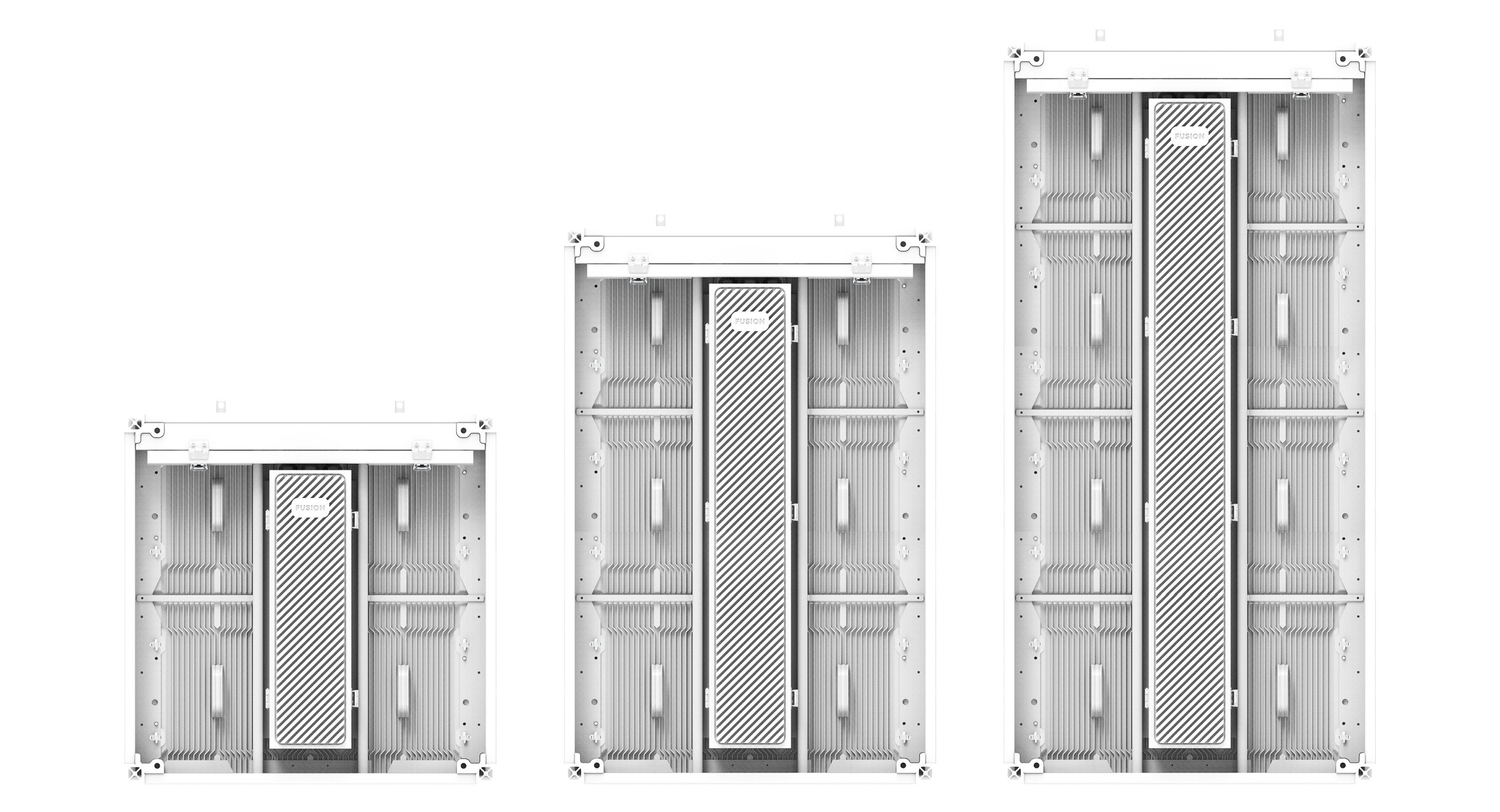

3 sizes
High work efficiency
Increasing the size of the panel can reduce installation labor and screen flatness.
Salt-tolerant
Specialty Coatings
Used on offshore structures and ships, this ultra-strong painting technology will never corrode, even in salty environments.
3 sizes
High work efficiency
Increasing the size of the panel can reduce installation labor and screen flatness.
Fusion Fine
Specification
| Product | Fusion Fine p2.9 | Fusion Fine p3.9 | Fusion Fine p4.8 |
|---|---|---|---|
| Pixel pitch | 2.97619 mm | 3.90625 mm | 4.8076 mm |
| Brightness | 4,500 nit | 5,000 nit | 5,000 nit |
| Module size | 250 x 250 mm | 500 x 250 mm | 500 x 250 mm |
| Module resolution | 86 x 86 px | 128 x 64 px | 104 x 52 px |
| Panel size | 500 x 500, 750, 1,000 mm | 500 x 500, 750, 1,000 mm | 500 x 500, 750, 1,000 mm |
| Panel resolution | 168 x 336 px (500 x 1,000 mm) | 128 x 256 px (500 x 1,000 mm) | 104 x 208 px (500 x 1,000 mm) |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 140° (H, V) | 140° (H, V) | 140° (H, V) |
| Weight | 30 kg / sqm | 30 kg / sqm | 30 kg / sqm |
| Working temperature | -30~60℃ | -30~60℃ | -30~60℃ |
| Humidity | 10~90% | 10~90% | 10~90% |
| Maintenance | Front & Rear | Front & Rear | Front & Rear |
| Power consumption | Max. 750│Avg. 250 w/sqm | Max. 650│Avg. 217 w/sqm | Max. 650│Avg. 217 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
| Product | Fusion Fine p2.9 | Fusion Fine p3.9 | Fusion Fine p4.8 |
|---|---|---|---|
| Pixel pitch | 2.97619 mm | 3.90625 mm | 4.8076 mm |
| Brightness | 4,500 nit | 5,000 nit | 5,000 nit |
| Module size | 250 x 250 mm | 500 x 250 mm | 500 x 250 mm |
| Module resolution | 86 x 86 px | 128 x 64 px | 104 x 52 px |
| Panel size | 500 x 500, 750, 1,000 mm | 500 x 500, 750, 1,000 mm | 500 x 500, 750, 1,000 mm |
| Panel resolution | 168 x 336 px (500 x 1,000 mm) | 128 x 256 px (500 x 1,000 mm) | 104 x 208 px (500 x 1,000 mm) |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 140° (H, V) | 140° (H, V) | 140° (H, V) |
| Weight | 30 kg / sqm | 30 kg / sqm | 30 kg / sqm |
| Working temperature | -30~60℃ | -30~60℃ | -30~60℃ |
| Humidity | 10~90% | 10~90% | 10~90% |
| Maintenance | Front & Rear | Front & Rear | Front & Rear |
| Power consumption | Max. 750│Avg. 250 w/sqm | Max. 650│Avg. 217 w/sqm | Max. 650│Avg. 217 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
Installation examples
Dosan 150 - Sunken Garden
- Product: Fusion Fine
- Pixel Pitch: 3.9 mm
- Screen size: 8 x 8 m
