Indoor Micro LED
Diamond
Micro LED
Core
Micro LED
Pixel pitch │ p0.7 p0.9 p1.2 p1.5 p1.8
Panel size │ 600 x 337.5 mm
Application │ Situation Room Meeting Room VIP Space
800 nit
Brightness
7 kg/sqm
Weight
178
Viewing angle
100,000 hours
Life span
800 nit
Brightness
7 kg/sqm
Weight
178
Viewing angle
100,000 hours
Life span
The perfect blend of darkness and light Best contrast ratio
Experience true black screens with deep contrast and realism with 5th generation Micro LEDs.
DualCoat
Strong durability without deformation
DualCoat is a high-quality double coat that resists temperature changes and protects against scratches and UV fading.
DualCoat
General Products
Troubleshooting bad pixels
Physical and natural dead pixels
Minimize incidence rates
DualCoat prevents dead pixels from occurring.
Few physical and natural dead pixels.
No Wire
Long-term colorfast
High quality flip-chip
LEDs do discolor over time, premium Flip-chip to minimize aging and discoloration.
Flip-chip
General Products
12,000 : 1
Unparalleled contrast
Diamond products offer 12,000:1 contrast ratio and 1.5x more higher brightness to bring your content to life.
Core Micro LED
General Products
Precision
Perfect precision
Step Zero
It overcomes the common disadvantage of COBs, where gaps between modules are a disadvantage by providing a cleaner screen with fewer steps.
Safety
Zero Failure Rate
High-end quality
Diamond products are of impeccable quality, reducing failure rates so you don't have to worry about repairs.
Precision
Perfect precision
Step Zero
It overcomes the common disadvantage of COBs, where gaps between modules are a disadvantage by providing a cleaner screen with fewer steps.
Safety
Zero Failure Rate
High-end quality
Diamond products are of impeccable quality, reducing failure rates so you don't have to worry about repairs.

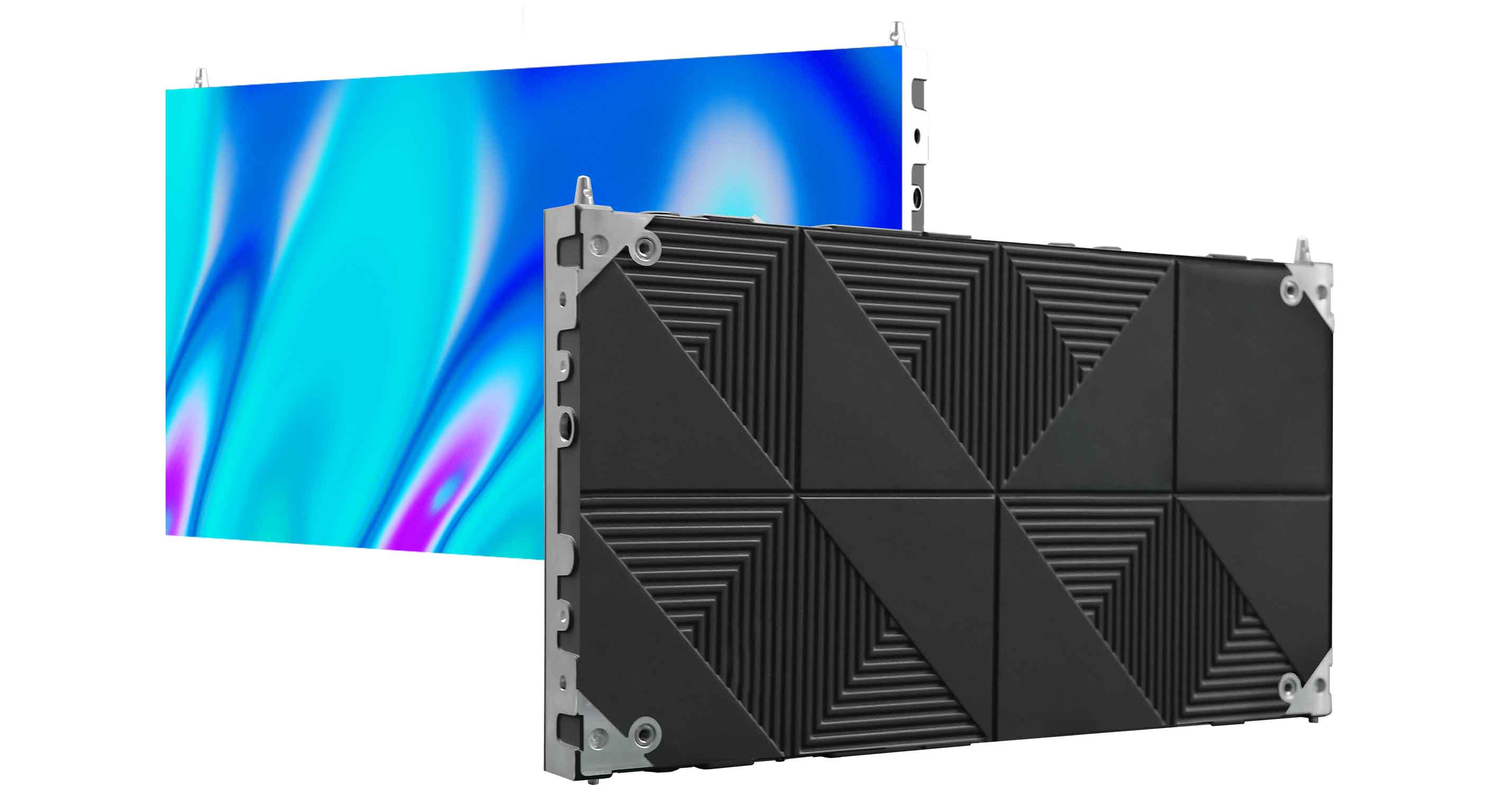

Diamond Micro LED
Specification
| Product | Diamond p0.9 | Diamond p1.2 | Diamond p1.5 |
|---|---|---|---|
| Pixel pitch | 0.95 mm | 1.26666 mm | 1.58333 mm |
| Brightness | 800 nit | 800 nit | 800 nit |
| Module size | 152 x 171 mm | 152 x 171 mm | 152 x 171 mm |
| Module resolution | 160 x 180 px | 120 x 135 px | 96 x 108 px |
| Panel size | 608 x 342 mm | 608 x 342 mm | 608 x 342 mm |
| Panel resolution | 640 x 360 px | 480 x 270 px | 384 x 216 px |
| Contrast ratio | 25,000 : 1 | 25,000 : 1 | 25,000 : 1 |
| Thickness | 49 mm | 49 mm | 49 mm |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 178° (H, V) | 178° (H, V) | 178° (H, V) |
| Weight | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% |
| Power consumption | Max. 398 w/sqm | Avg. 133 w/sqm | Max. 398 w/sqm | Avg. 133 w/sqm | Max. 398 w/sqm | Avg. 133 w/sqm |
| Grayscale | 22 bit | 22 bit | 22 bit |
| Product | Diamond p0.9 | Diamond p1.2 | Diamond p1.5 |
|---|---|---|---|
| Pixel pitch | 0.95 mm | 1.26666 mm | 1.58333 mm |
| Brightness | 800 nit | 800 nit | 800 nit |
| Module size | 152 x 171 mm | 152 x 171 mm | 152 x 171 mm |
| Module resolution | 160 x 180 px | 120 x 135 px | 96 x 108 px |
| Panel size | 608 x 342 mm | 608 x 342 mm | 608 x 342 mm |
| Panel resolution | 640 x 360 px | 480 x 270 px | 384 x 216 px |
| Contrast ratio | 25,000 : 1 | 25,000 : 1 | 25,000 : 1 |
| Thickness | 49 mm | 49 mm | 49 mm |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 178° (H, V) | 178° (H, V) | 178° (H, V) |
| Weight | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% |
| Power consumption | Max. 398 w/sqm | Avg. 133 w/sqm | Max. 398 w/sqm | Avg. 133 w/sqm | Max. 398 w/sqm | Avg. 133 w/sqm |
| Grayscale | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
Installation examples
Gimpo Airport VIP Lounge - Paradise
- Product: Core Micro LED
- Pixel Pitch: 1.2 mm
- Between screens: 3 x 1.6 m
