Indoor Panel
Luna
Luna
Pixel pitch │ p1.95 p2.6
Panel size │ 250 x 500 mm 250 x 750 mm 250 x 1000 mm
500 x 500 mm 500 x 750 mm 500 x 1000 mm
Panel size │ 250 x 500 mm 250 x 750 mm
250 x 1000 mm 500 x 500 mm
500 x 750 mm 500 x 1000 mm
Application │ Convention Lobby VIP Area Column (90°)
1,000 nit
Brightness (Max)
160
Viewing angle
18.5 kg/sqm
Weight (Max)
100,000 hours
Life span
1,000 nit
Brightness (Max)
160
Viewing angle
18.5 kg/sqm
Weight (Max)
100,000 hours
Life span

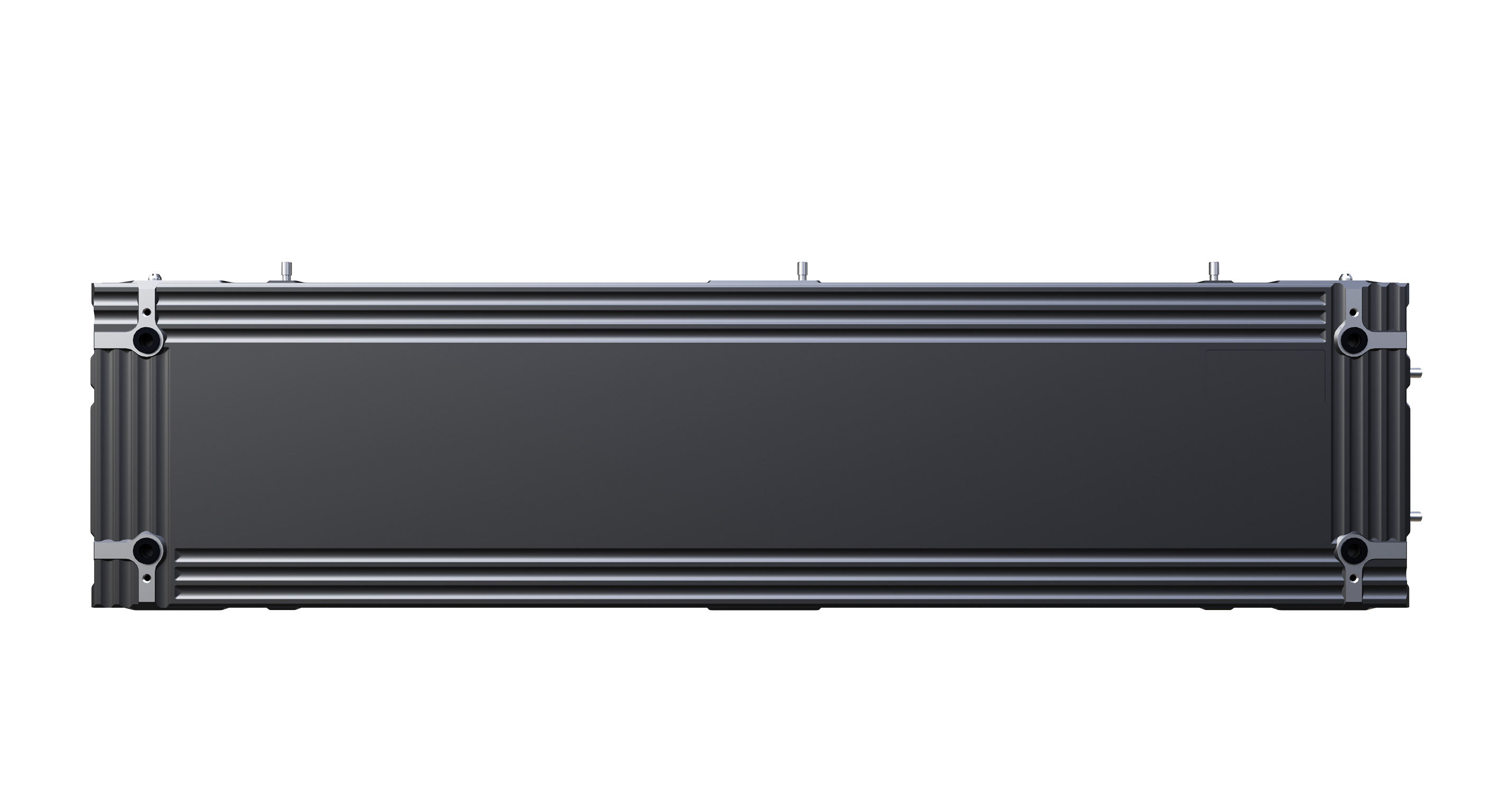

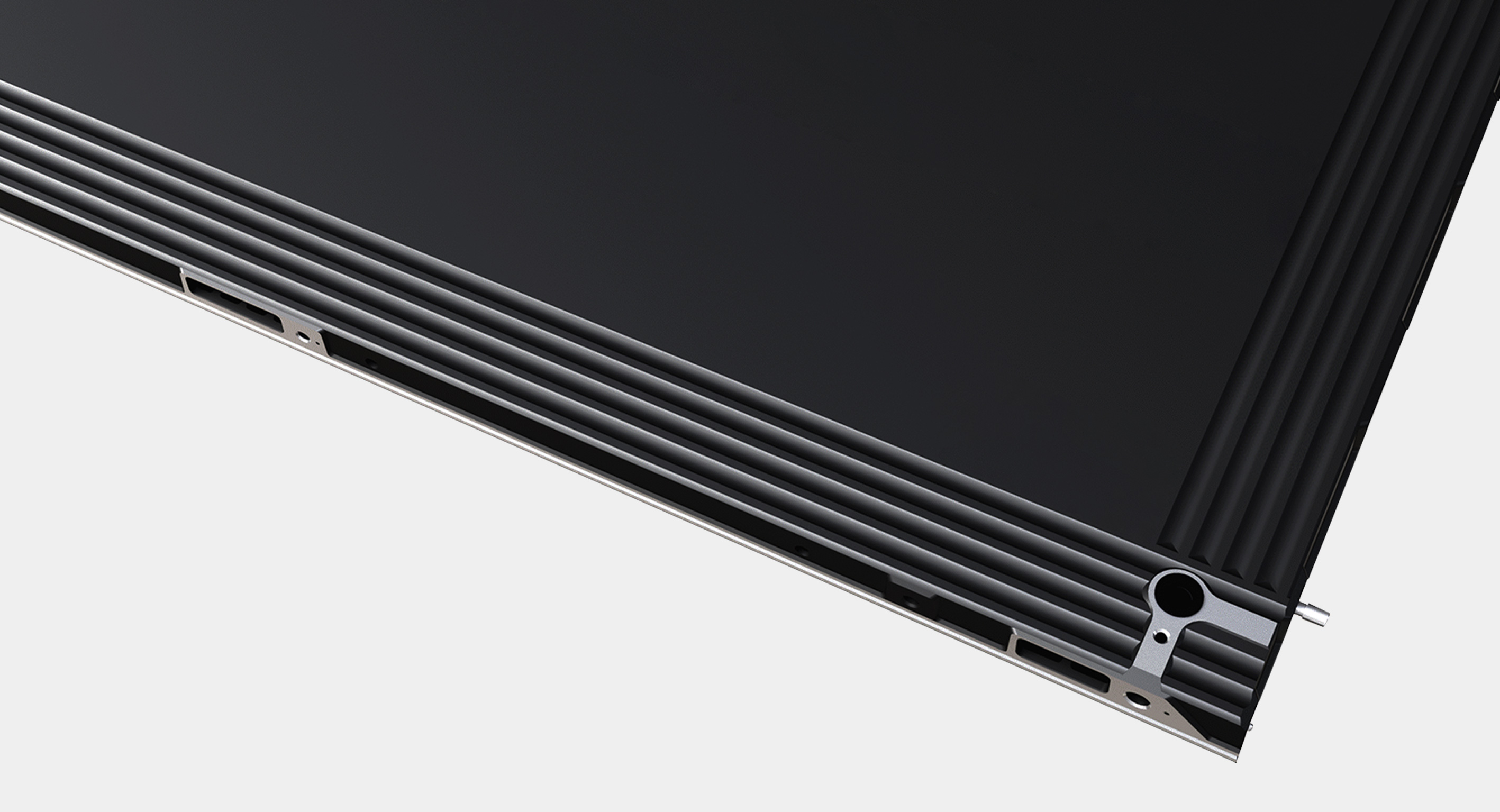

Precision die-casting
ensures flatness
Ultra-precision die-casting ensures flatness and consistent screen quality.
Super Black
Unbeatable black level
SuperBlack™ delivers deep blacks and enhanced contrast for immersive visuals.
Super Black
General Products

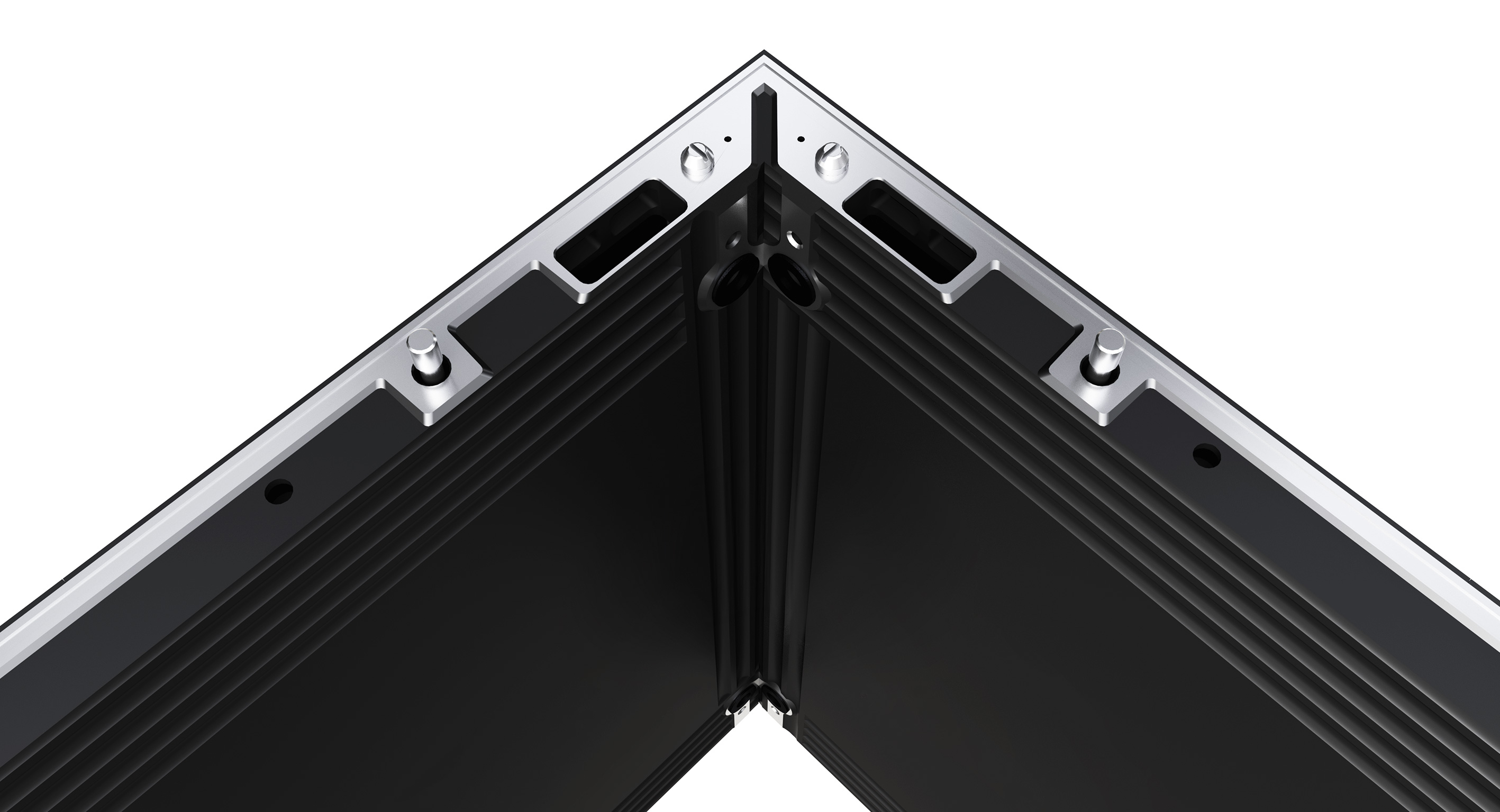

L-Shape
Flexible sizes and
installation options
Precise side cutting enables accurate L-shaped installation, improving space and immersion.

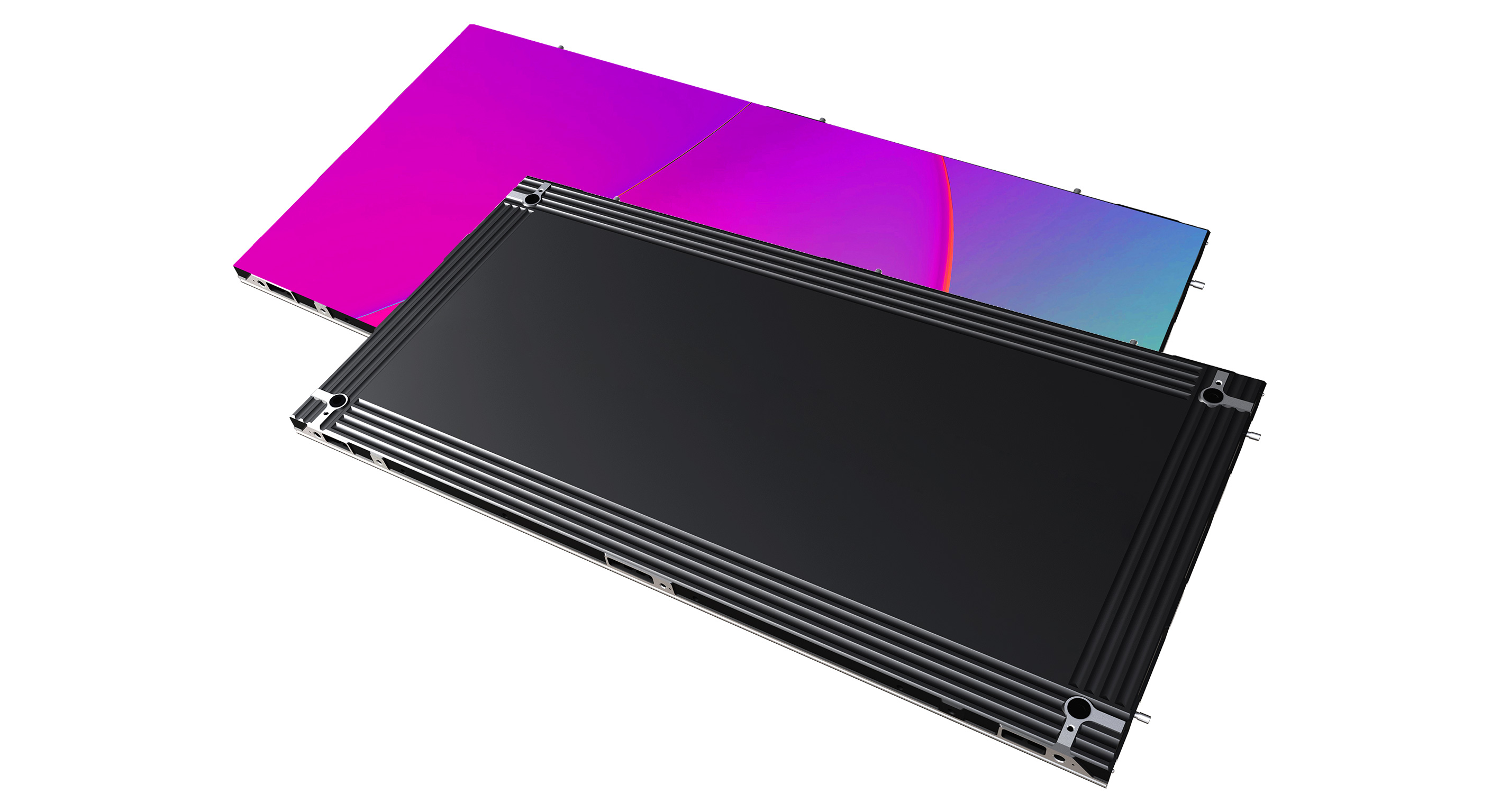

Multi-Size
As many times as
needed, adjust freely
There are six panel sizes,
adjust freely
L-Shape
Flexible sizes and
installation options
Precise side cutting enables accurate L-shaped installation, improving space and immersion.
Multi-Size
As many times as
needed, adjust freely
There are six panel sizes, Screen sizing is easy.
Luna
Specification
| Product | Luna p1.9 | Luna p2.6 |
|---|---|---|
| Pixel pitch | 1.953125 mm | 2.60416 mm |
| Brightness | 700 nit | 800 nit |
| Module size | 250 x 250 mm | 250 x 250 mm |
| Module resolution | 128 x 128 px | 96 x 96 px |
| Panel size | 1,000, 750, 500, 250 x 500 mm | 1,000, 750, 500, 250 x 500 mm |
| Panel resolution | 512 x 256 px (1,000 x 500 mm) | 384 x 192 px (1,000 x 500 mm) |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) |
| Weight | 18.5 kg/sqm | 18 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% |
| Maintenance | Front | Front |
| Power consumption | Max. 435│Avg. 130 w/sqm | Max. 400│Avg. 120 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit |
| Product | Luna p1.9 | Luna p2.6 |
|---|---|---|
| Pixel pitch | 1.953125 mm | 2.60416 mm |
| Brightness | 700 nit | 800 nit |
| Module size | 250 x 250 mm | 250 x 250 mm |
| Module resolution | 128 x 128 px | 96 x 96 px |
| Panel size | 1,000, 750, 500, 250 x 500 mm | 1,000, 750, 500, 250 x 500 mm |
| Panel resolution | 512 x 256 px (1,000 x 500 mm) | 384 x 192 px (1,000 x 500 mm) |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) |
| Weight | 18.5 kg/sqm | 18 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% |
| Maintenance | Front | Front |
| Power consumption | Max. 435│Avg. 130 w/sqm | Max. 400│Avg. 120 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.
Installation examples
L7 Haeundae by Lotte - Lobby
- Product: Luna
- Pixel Pitch: 1.95 mm
- Screen Size: 19.3 x 3.5 m
