Indoor Panel
Genius
Genius
Pixel pitch │ p0.9 p1.2 p1.5 p1.9 p2.5
Panel size │ 610 x 343 mm
Application │ Commercial space Shopping mall Advertising Hospital Church
600 nit
Brightness (Max)
160
Viewing angle
7 kg/sqm
Weight
100,000 hours
Life span
600 nit
Brightness (Max)
160
Viewing angle
7 kg/sqm
Weight
100,000 hours
Life span

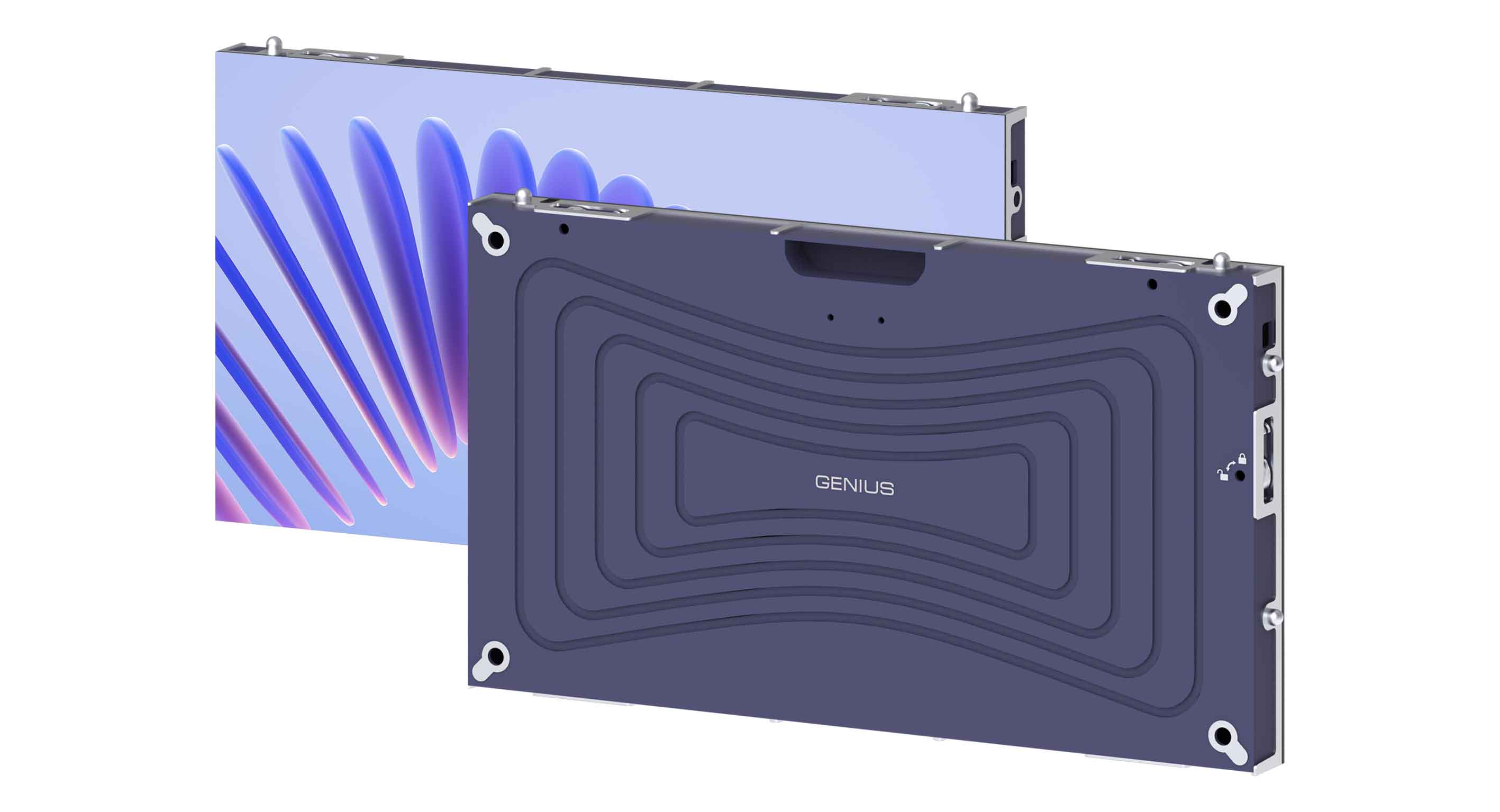

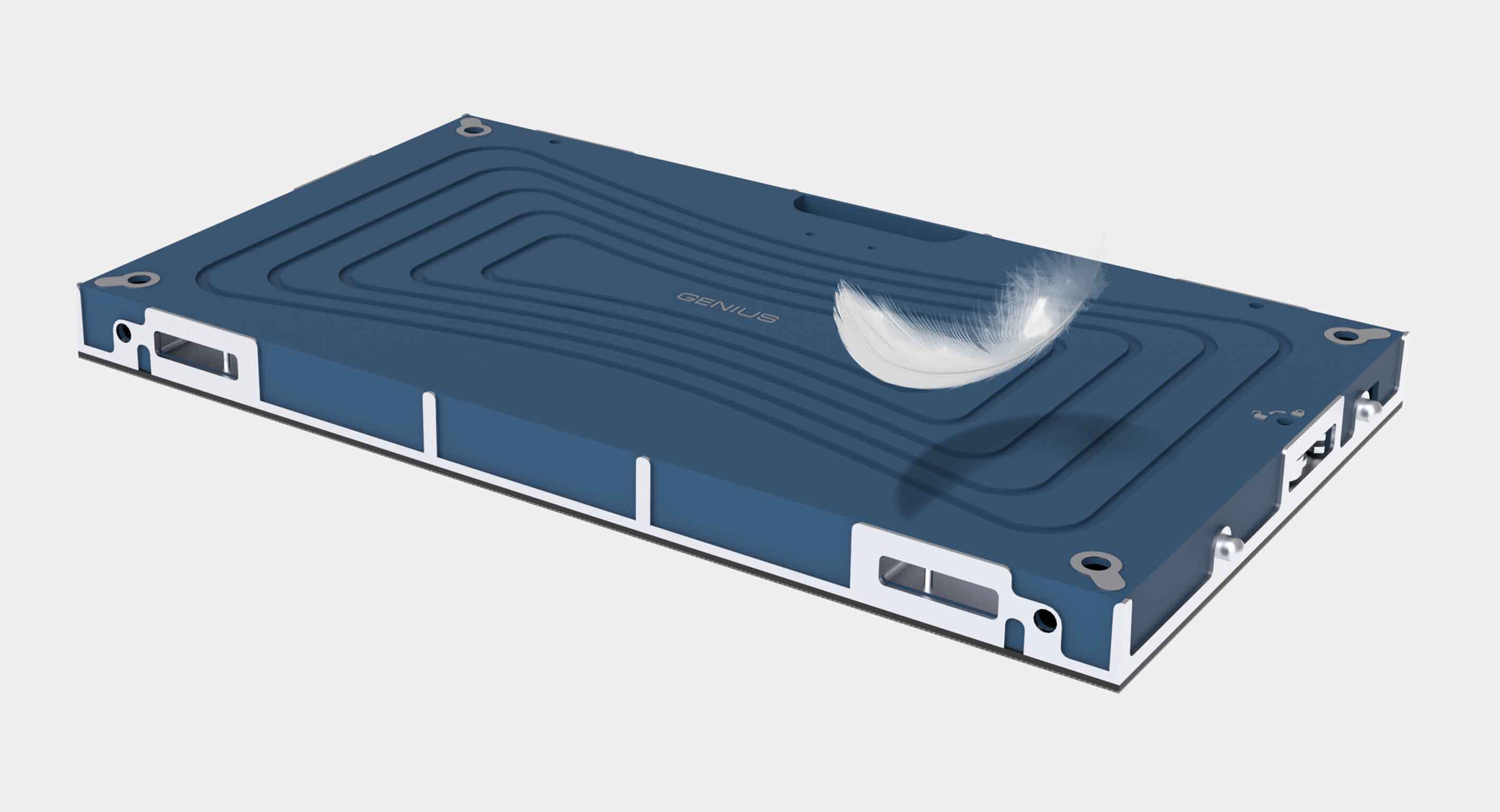

The world's thinnest
Panel
Weighs only 38.5 mm. Easy maintenance and better space utilization.

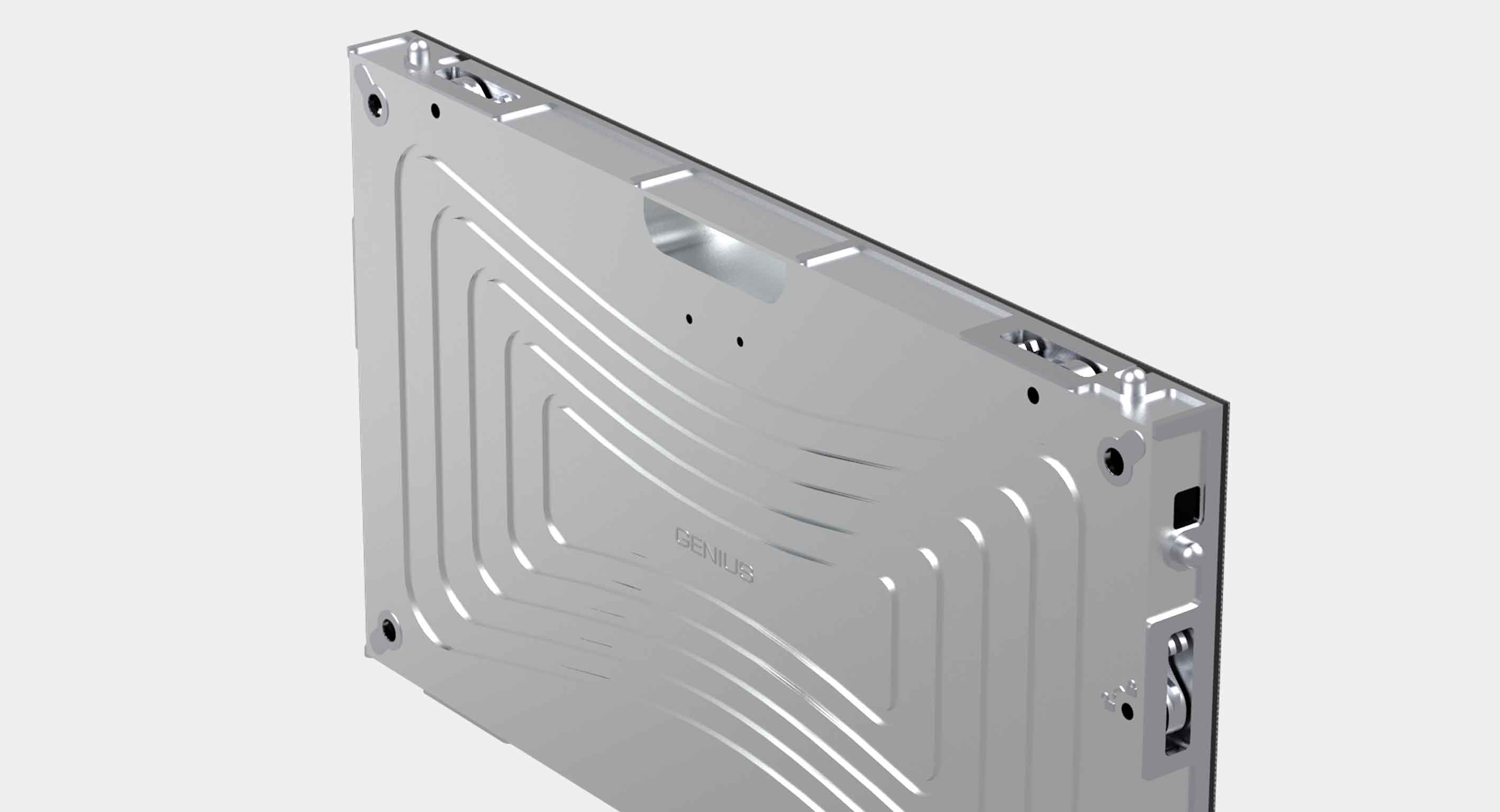

Full Aluminum Body
Materiality features
Full aluminum body
The entire body is made of aluminum die-casting aluminum die-casting. It dissipates heat quickly and does not corrode.
Precision
Incomparable
Screen flatness
It creates a much flatter screen than a swivel mount, and the module height adjustment allows for post-installation calibration.

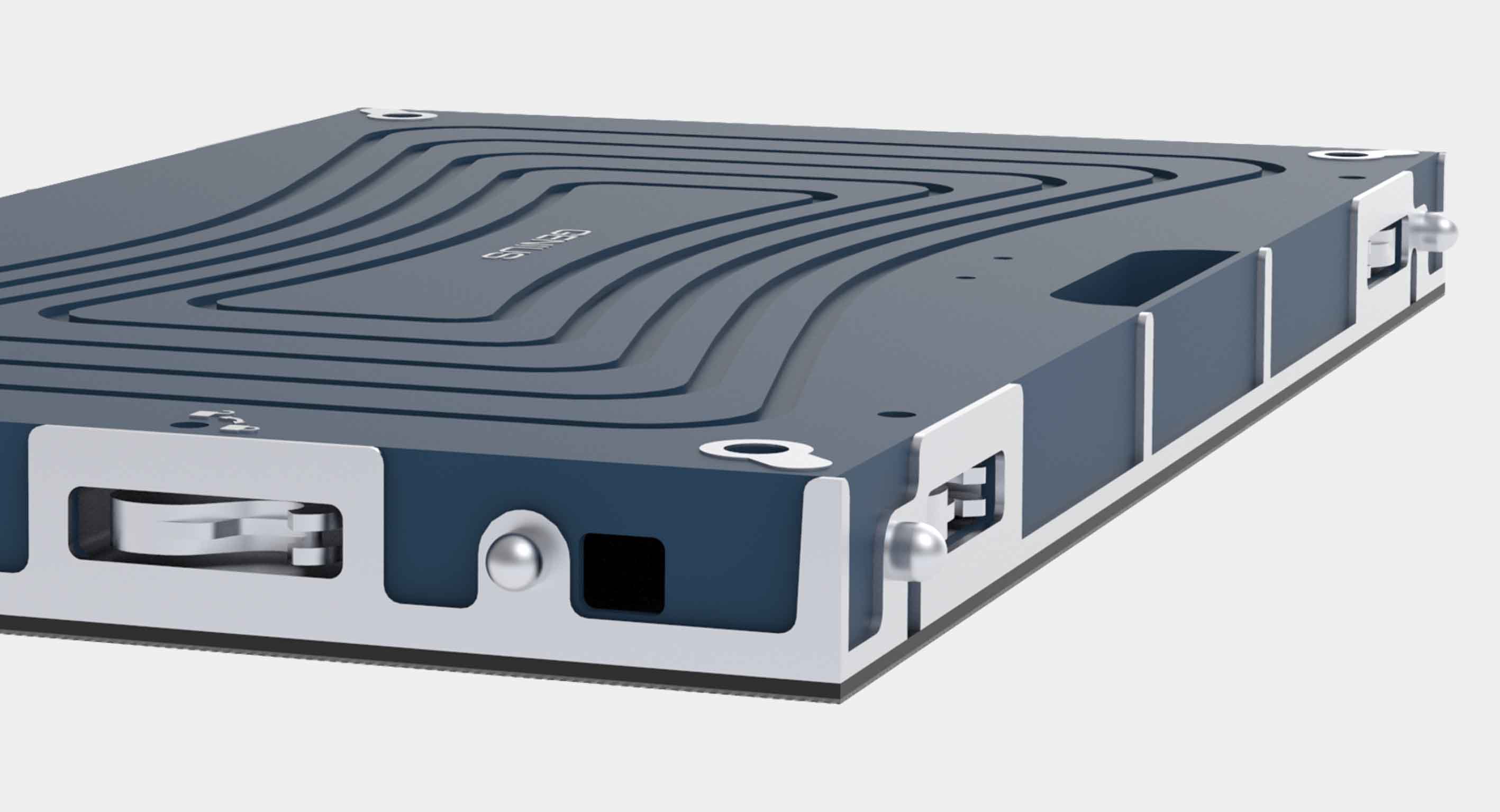

Custom connectors
Angle-independent
Display
Both inner and outer curves are supported. You can use custom connectors to implement the curves you want.
SimpleBoard
General Products
Zero Failure Rate
Simpleboard
Genius' simple boards are cable-free, low-failure, power-efficient, and heat-free thanks to their integrated design.
Outstanding
Fever Controls
Common-Cathode is applied, allowing it to operate at lower temperatures at the same brightness.
Zero Failure Rate
Simpleboard
Genius' simple boards are cable-free, low-failure, power-efficient, and heat-free thanks to their integrated design.
SimpleBoard
General Products

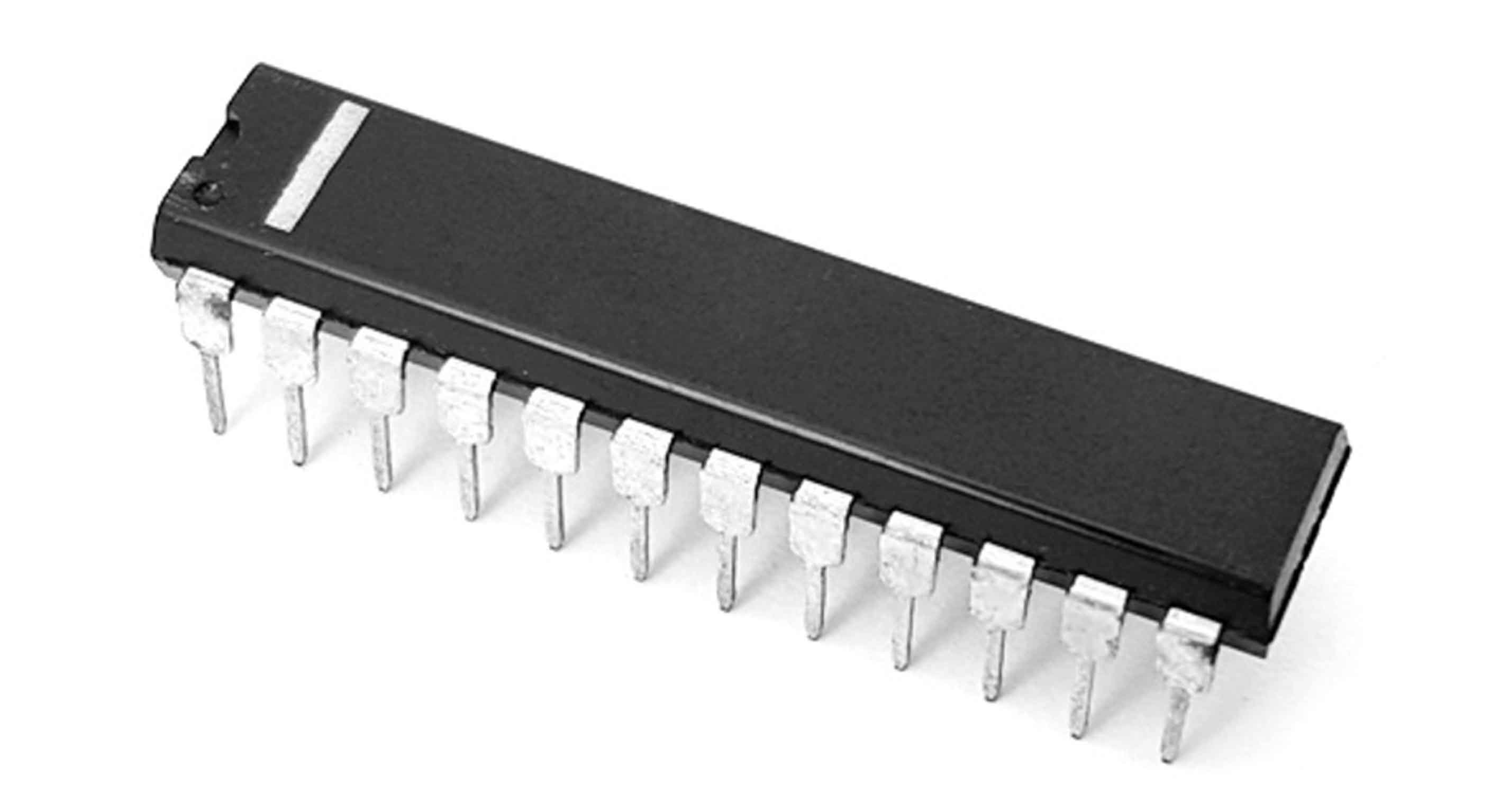

Common-Cathode
Superior heat control
Common-Cathode is applied, allowing it to operate at lower temperatures at the same brightness.
Genius
Specification
| Product | Genius p0.9 | Genius p1.2 | Genius p1.5 | Genius 1.9 | Genius p2.5 |
|---|---|---|---|---|---|
| Pixel pitch | 0.953125 mm | 1.27083 mm | 1.58854 mm | 1.90625 mm | 2.54166 mm |
| Brightness | 500 nit | 600 nit | 600 nit | 600 nit | 600 nit |
| Panel size | 610 x 343 mm | 610 x 343 mm | 610 x 343 mm | 610 x 343 mm | 610 x 343 mm |
| Panel resolution | 640 x 360 px | 480 x 270 px | 384 x 216 px | 320 x 180 px | 240 x 135 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) |
| Weight | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front | Front | Front |
| Power consumption | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit |
| Product | Genius p0.9 | Genius p1.2 | Genius p1.5 | Genius 1.9 | Genius p2.5 |
|---|---|---|---|---|---|
| Pixel pitch | 0.953125 mm | 1.27083 mm | 1.58854 mm | 1.90625 mm | 2.54166 mm |
| Brightness | 500 nit | 600 nit | 600 nit | 600 nit | 600 nit |
| Panel size | 610 x 343 mm | 610 x 343 mm | 610 x 343 mm | 610 x 343 mm | 610 x 343 mm |
| Panel resolution | 640 x 360 px | 480 x 270 px | 384 x 216 px | 320 x 180 px | 240 x 135 px |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Viewing angle | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) | 160° (H, V) |
| Weight | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm | 7 kg/sqm |
| Working temperature | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ | -20~40℃ |
| Humidity | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
| Maintenance | Front | Front | Front | Front | Front |
| Power consumption | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm | Max. 600 w/sqm | Avg. 200 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit | 22 bit |
All products are customizable, so please contact us if you would like to change the specs.

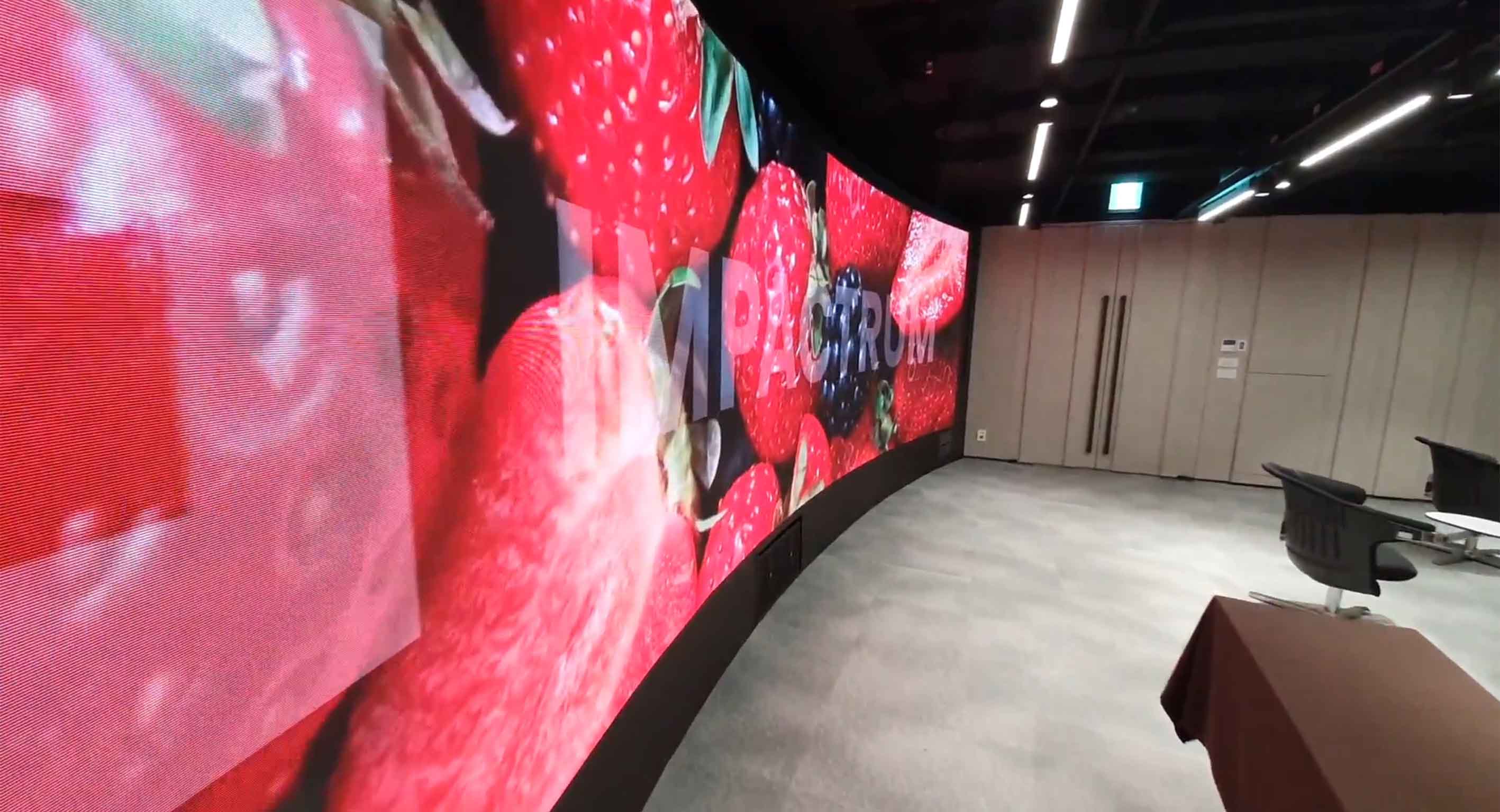

Installation examples
Grand Walkerhill SK Academy
- Studio
- Product: Genius
- Pixel Pitch: 2.5mm
- Screen Size: 7.93 x 2.058 m
