Transparent
Air Mesh
Air Mesh
Pixel pitch │ p3.9 p6.2 p10
Module Size │ 1000 x 250 mm 1171 x 250 mm
Application │ Glass Window Floating Content MediaArt
5,000 nit
Brightness (Max)
6 kg/sqm
Weight (Max)
3,840 Hz
Refresh rate
100,000 hours
Life span
5,000 nit
Brightness (Max)
6 kg/sqm
Weight (Max)
3,840 Hz
Refresh rate
100,000 hours
Life span
The third-generation
Transparent LED screens

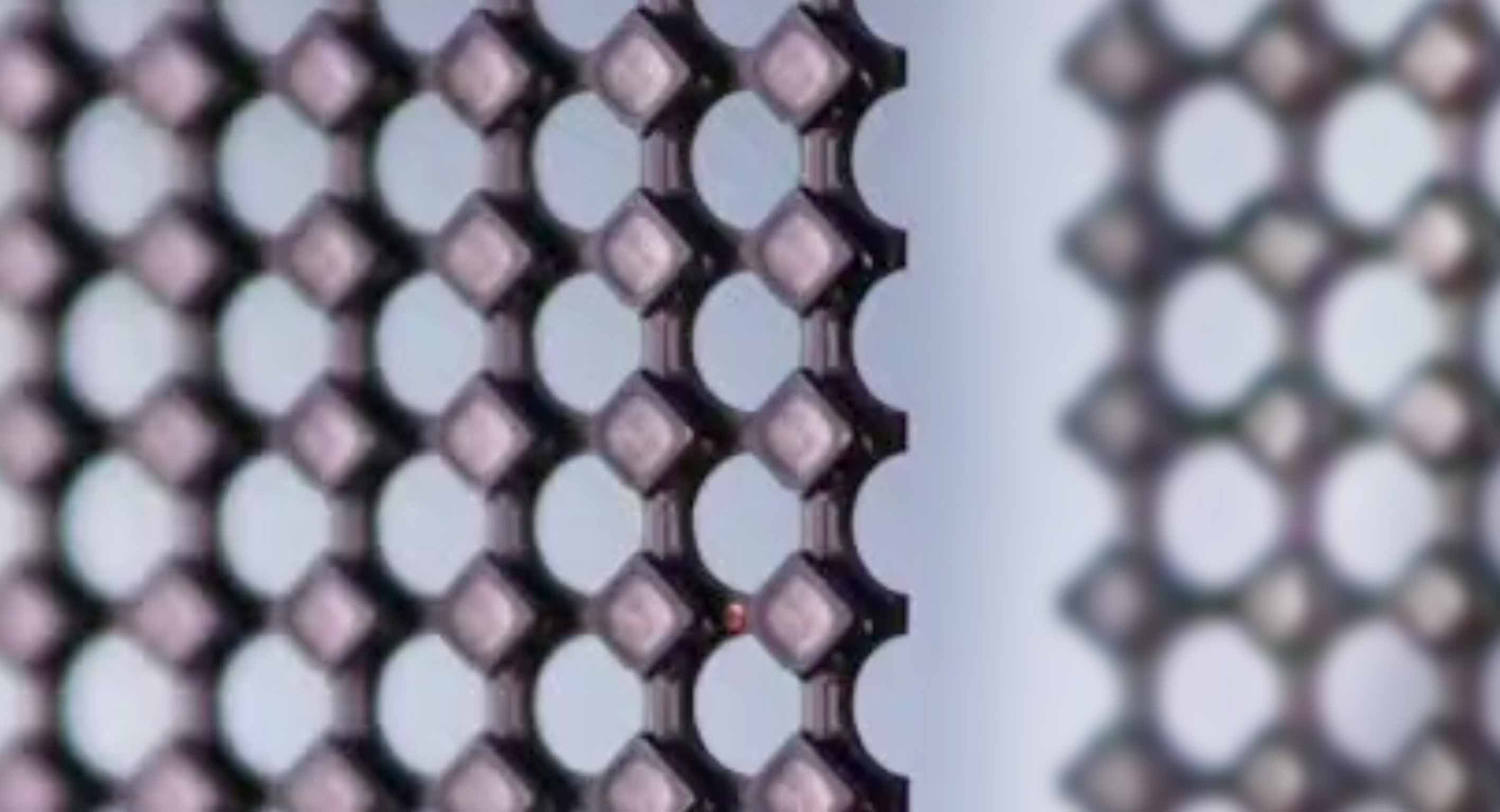

No obstructions in the center to block your view, and a transparent screen for an immersive visual experience.
installation options
Long-drop
Hold Force
Even if it's attached to curved glass and tension is created it's strong enough to stay put and not fall off even when tension is applied.
Premium Glue
Paste to finish installation

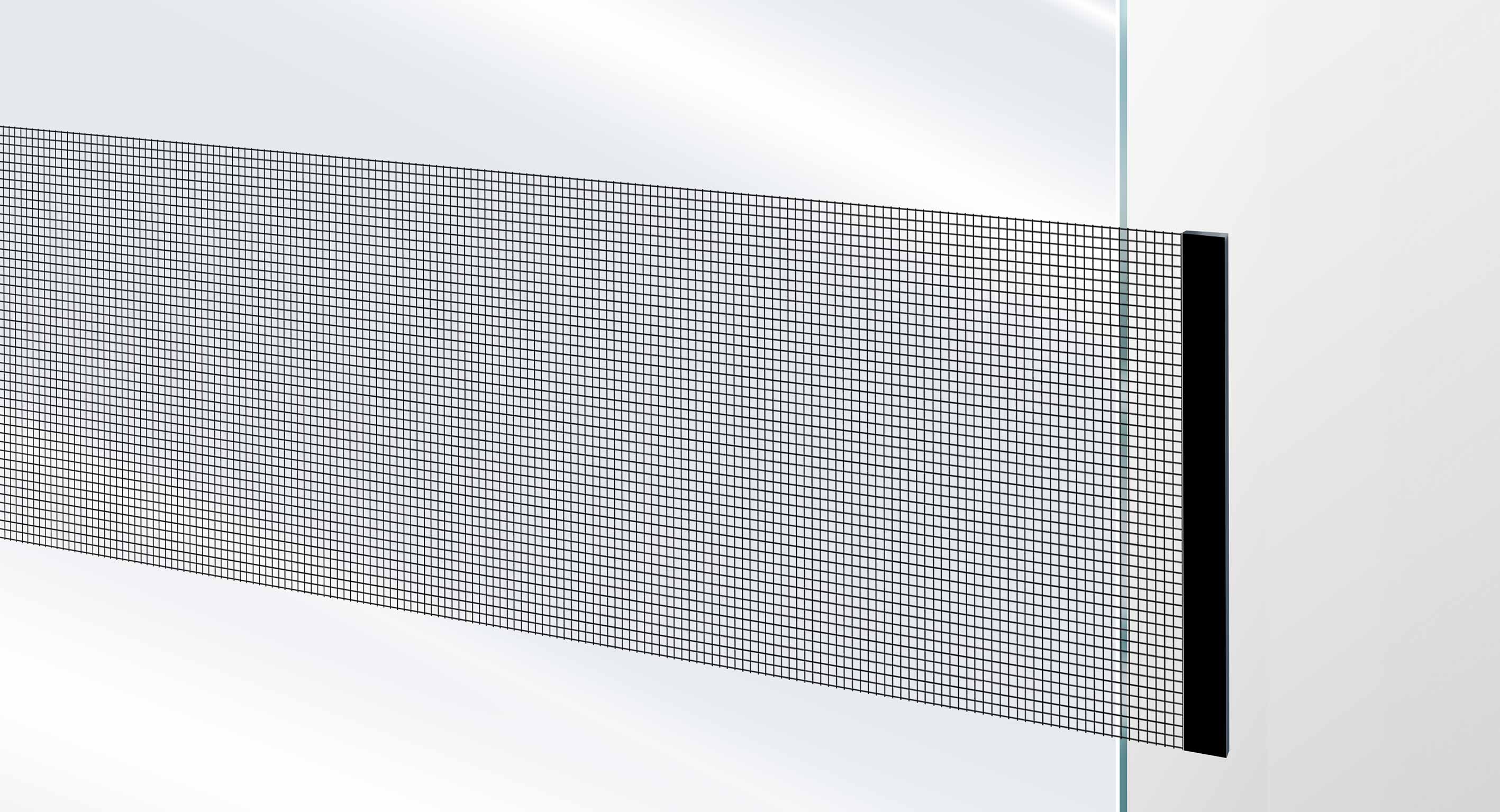

It attaches to glass or acrylic without a mounting frame for easy installation.
Bidirectional installs are possible
It can be attached to either the inside or outside of the glass to adapt to field conditions.
Air Mesh
Specification
| Product | Air Mesh p3.9 | Air Mesh p6.2 | Air Mesh p10 |
|---|---|---|---|
| Pixel pitch | 3.90625 mm | 6.2 mm | 10 mm |
| Brightness | 3,000 nit | 5,000 nit | 4,000 nit |
| Module size | 1,000 x 250 | 1,171 x 250 mm | 1,175 x 250 | 1,475 x 250 mm | 1,000 x 250 mm |
| Module resolution | 256 x 64 px (1,000 x 250 mm) | 188 x 40 px (1,175 x 250 mm) | 120 x 25 px (1,000 x 250 mm) |
| Overall dimension | 1025 x 250 | 1,200 x 250 mm | 1,200 x 250 | 1,500 x 250 mm | 1,000 x 250 mm |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Weight | 6 kg/sqm | 6 kg/sqm | 4.8 kg/sqm |
| Working temperature | -20~80℃ | -20~80℃ | -20~80℃ |
| Humidity | 10~90% | 10~90% | 10~90% |
| Transparency rate | 80% | 90% | 85% |
| Maintenance | Front | Front | Front |
| Power consumption | Max. 1,000│Avg. 375 w/sqm | Max. 1,000│Avg. 375 w/sqm | Max. 1,000│Avg. 375 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
| Product | Air Mesh p3.9 | Air Mesh p6.2 | Air Mesh p10 |
|---|---|---|---|
| Pixel pitch | 3.90625 mm | 6.2 mm | 10 mm |
| Brightness | 3,000 nit | 5,000 nit | 4,000 nit |
| Module size | 1,000 x 250 | 1,171 x 250 mm | 1,175 x 250 | 1,475 x 250 mm | 1,000 x 250 mm |
| Module resolution | 256 x 64 px (1,000 x 250 mm) | 188 x 40 px (1,175 x 250 mm) | 120 x 25 px (1,000 x 250 mm) |
| Overall dimension | 1025 x 250 | 1,200 x 250 mm | 1,200 x 250 | 1,500 x 250 mm | 1,000 x 250 mm |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Weight | 6 kg/sqm | 6 kg/sqm | 4.8 kg/sqm |
| Working temperature | -20~80℃ | -20~80℃ | -20~80℃ |
| Humidity | 10~90% | 10~90% | 10~90% |
| Transparency rate | 80% | 90% | 85% |
| Maintenance | Front | Front | Front |
| Power consumption | Max. 1,000│Avg. 375 w/sqm | Max. 1,000│Avg. 375 w/sqm | Max. 1,000│Avg. 375 w/sqm |
| Input voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit |
