Transparent

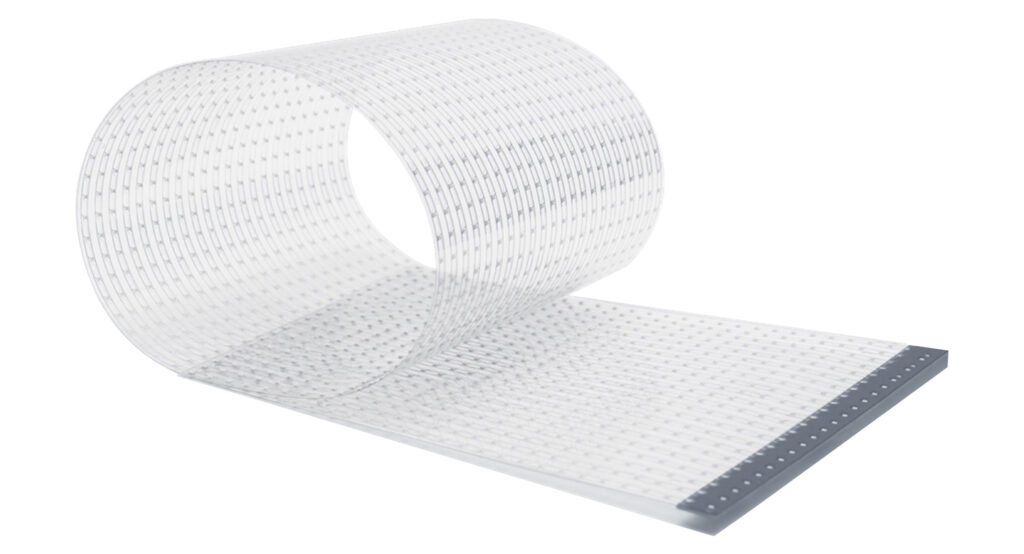

Air Clear Film
Air Clear Film
Indoor
Pixel pitch │ p8.3 p10.4 p15.4 p20.8
Film Size │ 832 x 249.6 mm
Outdoor
Pixel pitch │ p8.3 p10.4 p15.4 p20.8
Film Size │ 832 x 249.6 mm
Application │ Glass Window Transparent PET
4,000 nit
Brightness (Max)
2 kg/sqm
Weight
IP65
IP rating
100,000 hours
Life span
4,000 nit
Brightness (Max)
2 kg/sqm
Weight
IP65
IP rating
100,000 hours
Life span
World firsts

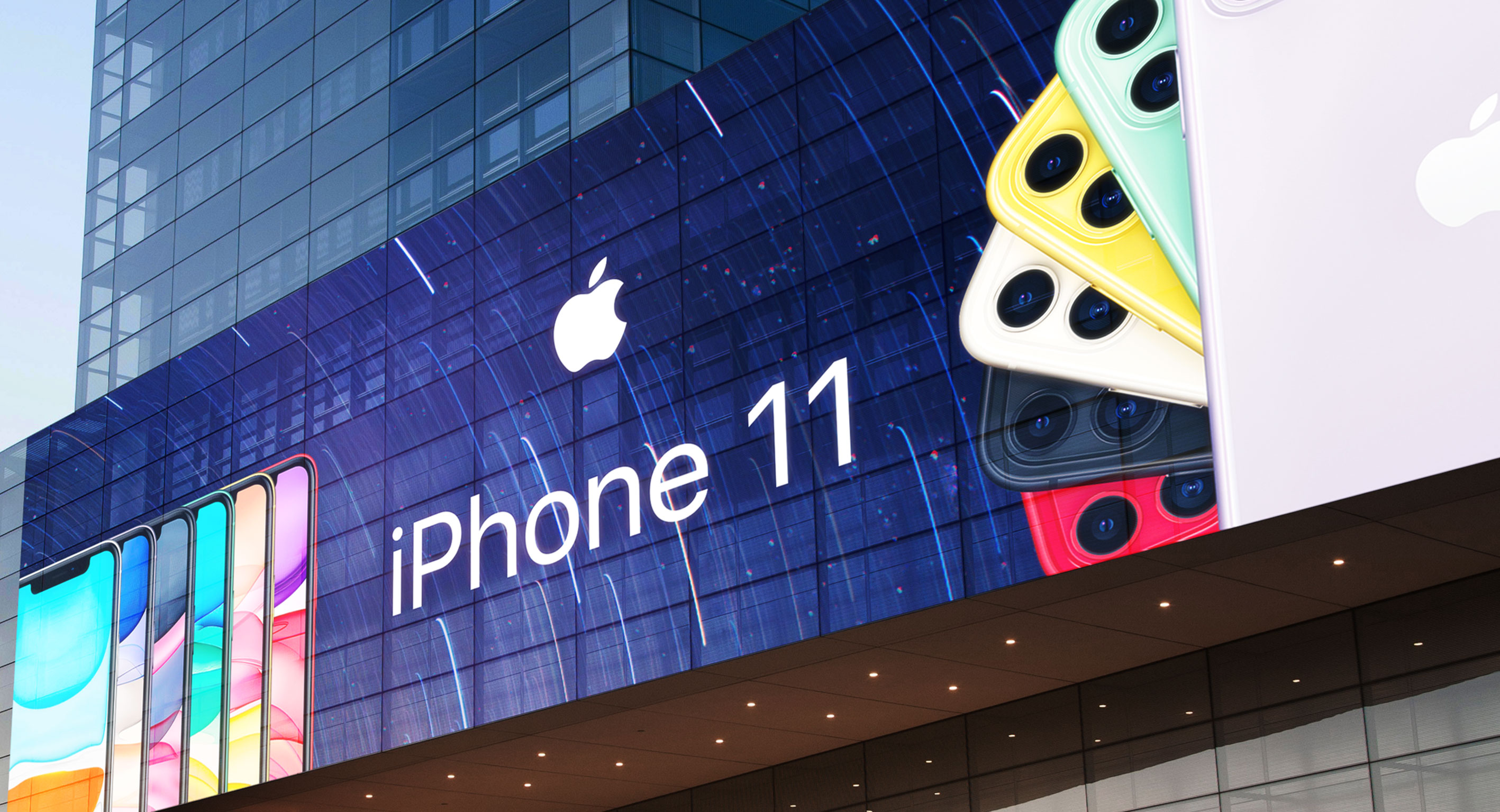

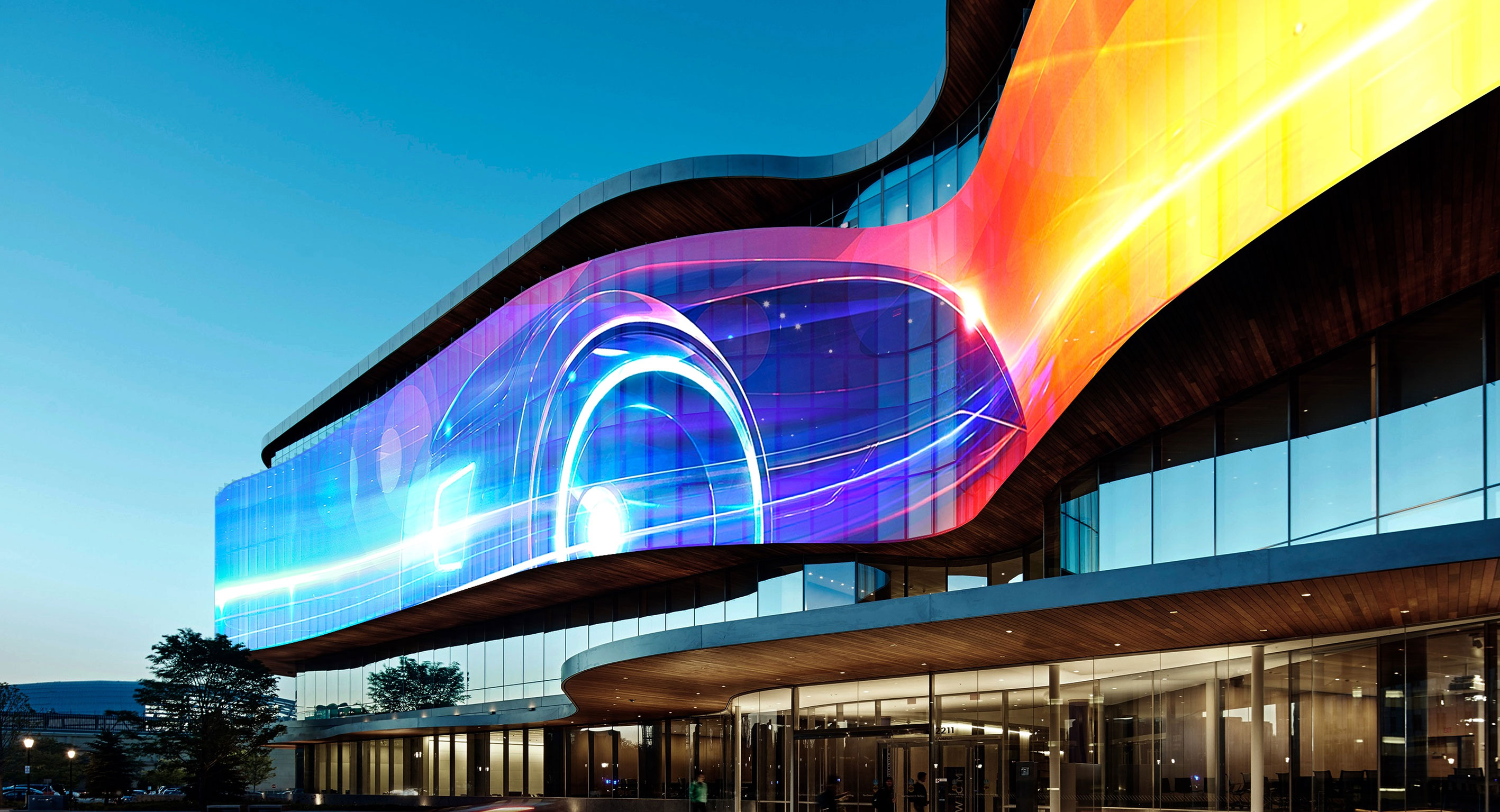

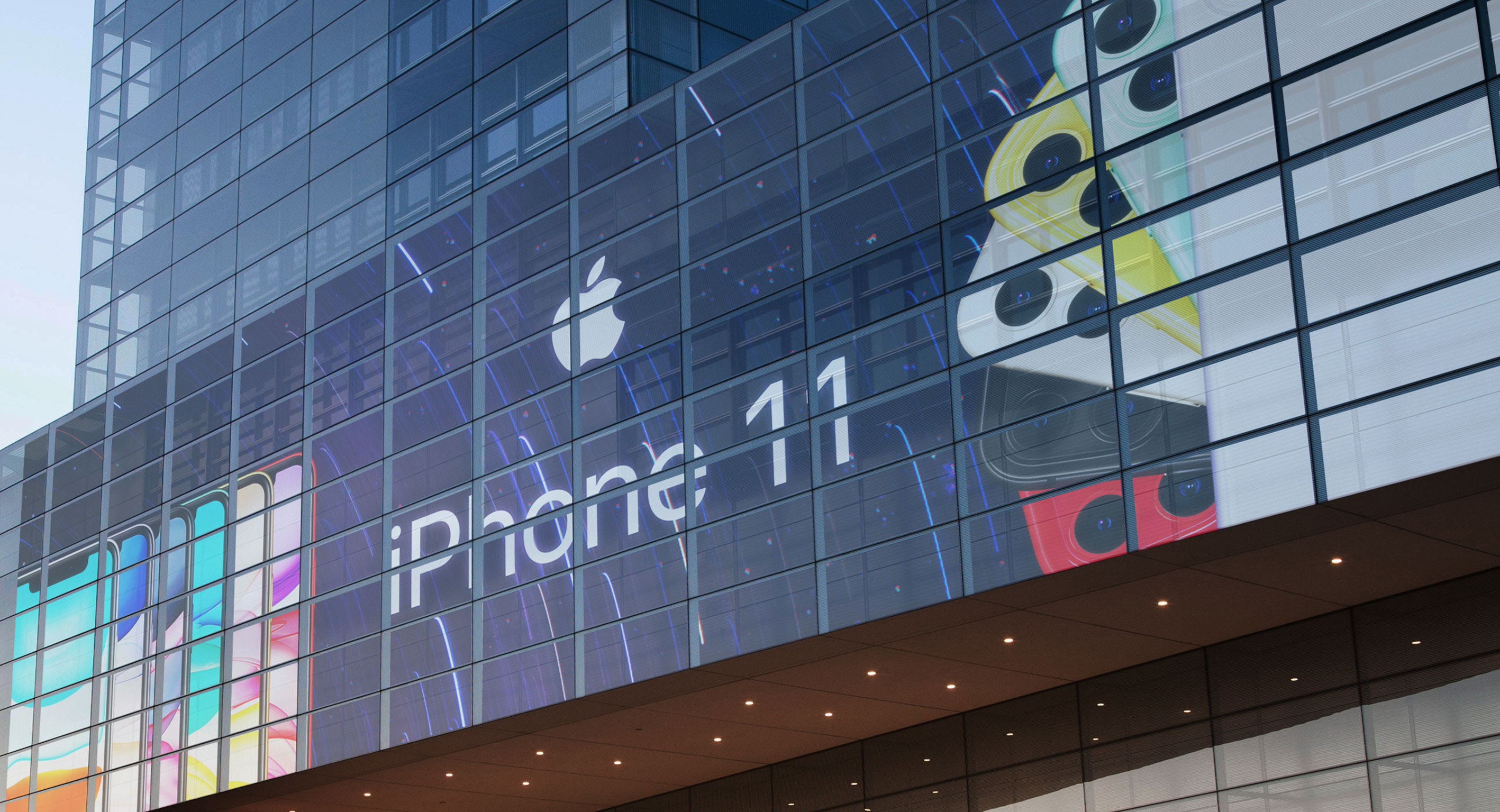

Film for outdoor installation
While traditional installations degrade screen quality, Impactrum moves the screen outside for a pleasant viewing experience.
Air Clear Film
General Products
Best-in-class
Go beyond traditional products
Pixel Pitch
Air Clear Film has an 8.3 mm pixel pitch for indoor and outdoor installation, while regular products have limited resolution.
Air Clear Film
General Products
Pixel Fitting
World's brightest
It uses an ultra-compact LED chip that produces bright light and is optimally sized for optimally sized light for a crisp display.

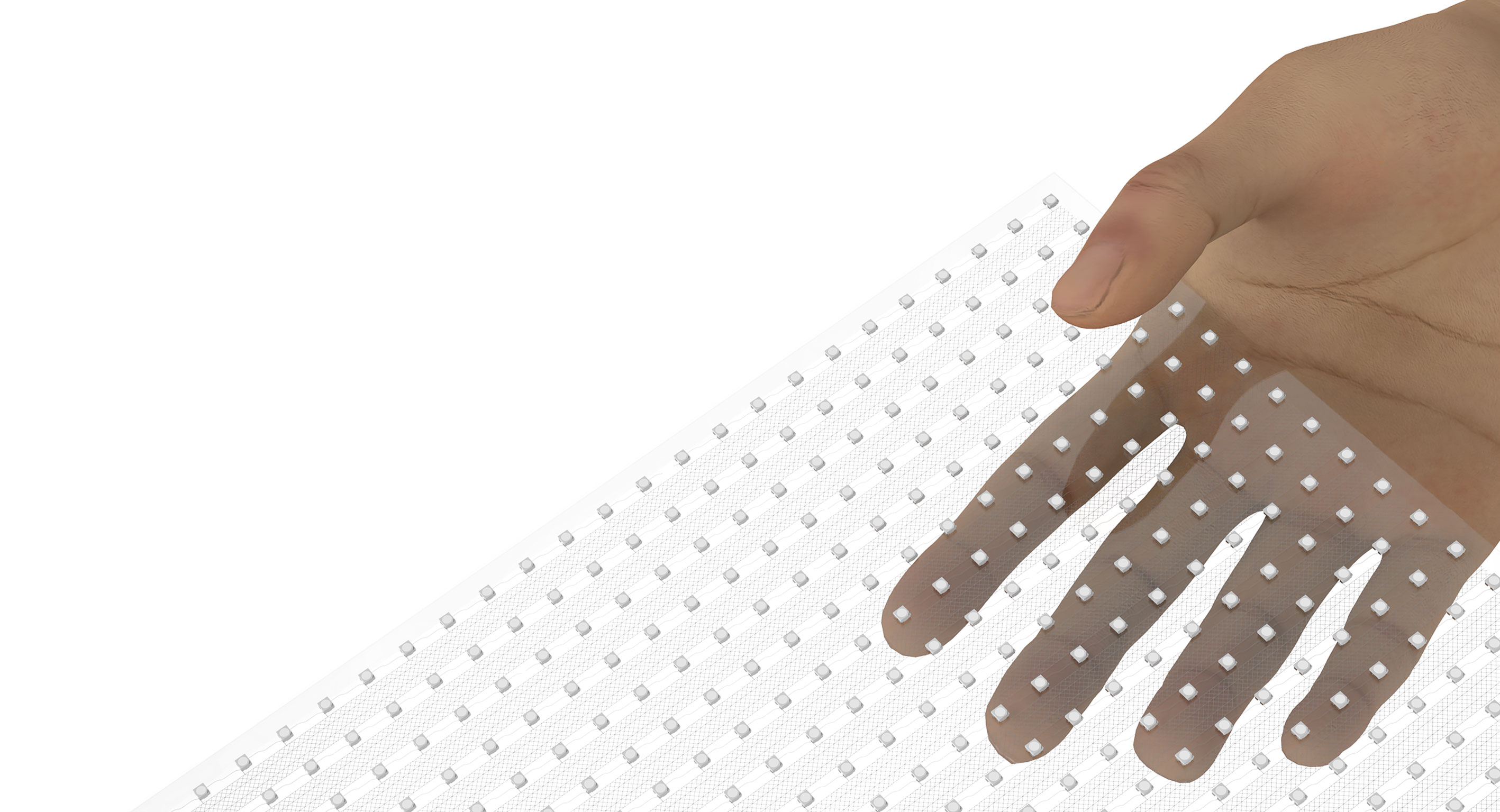

Micro Wire
Thin and invisible
Electrode thickness
Air Clear Film is very visually pleasing with 100 micrometer electrodes.

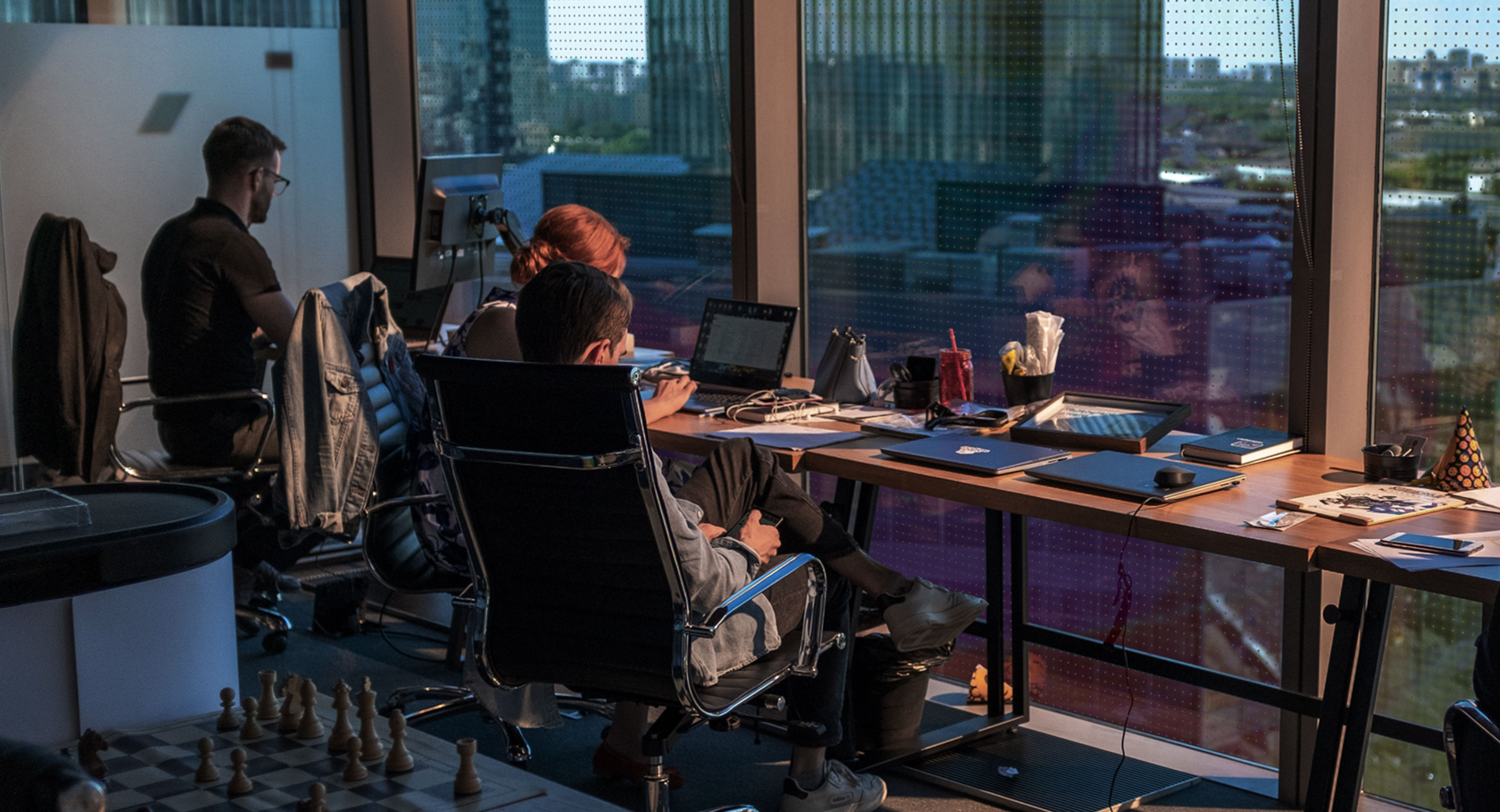

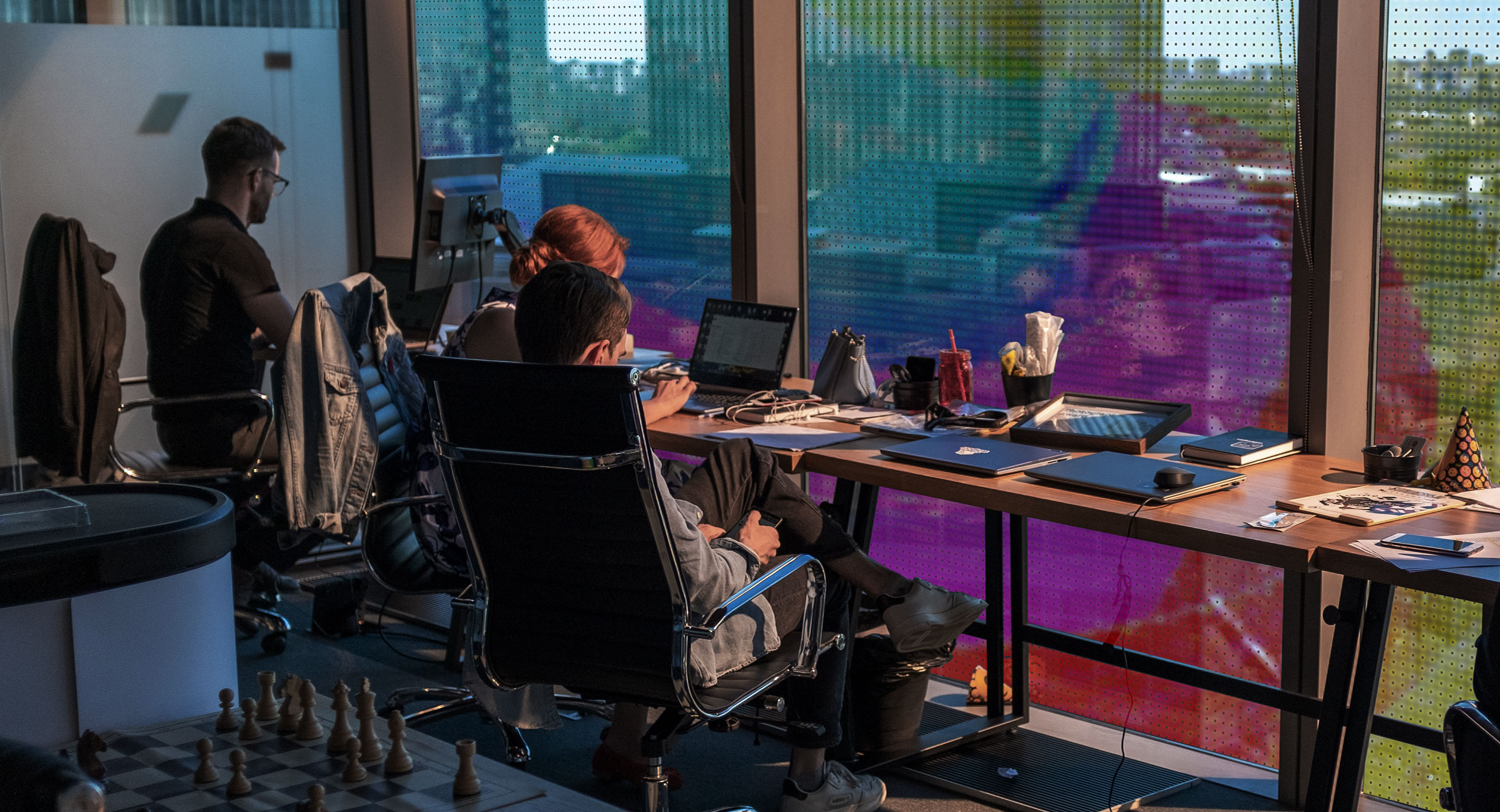

Rear Light Leak Blocking Chip
General Chip
Separate options
No visual stimuli
Block rear light leaks
Air Clear Film blocks 80% light from leaking out the sides and back, making the so there's not as much visual stimulation on the back.

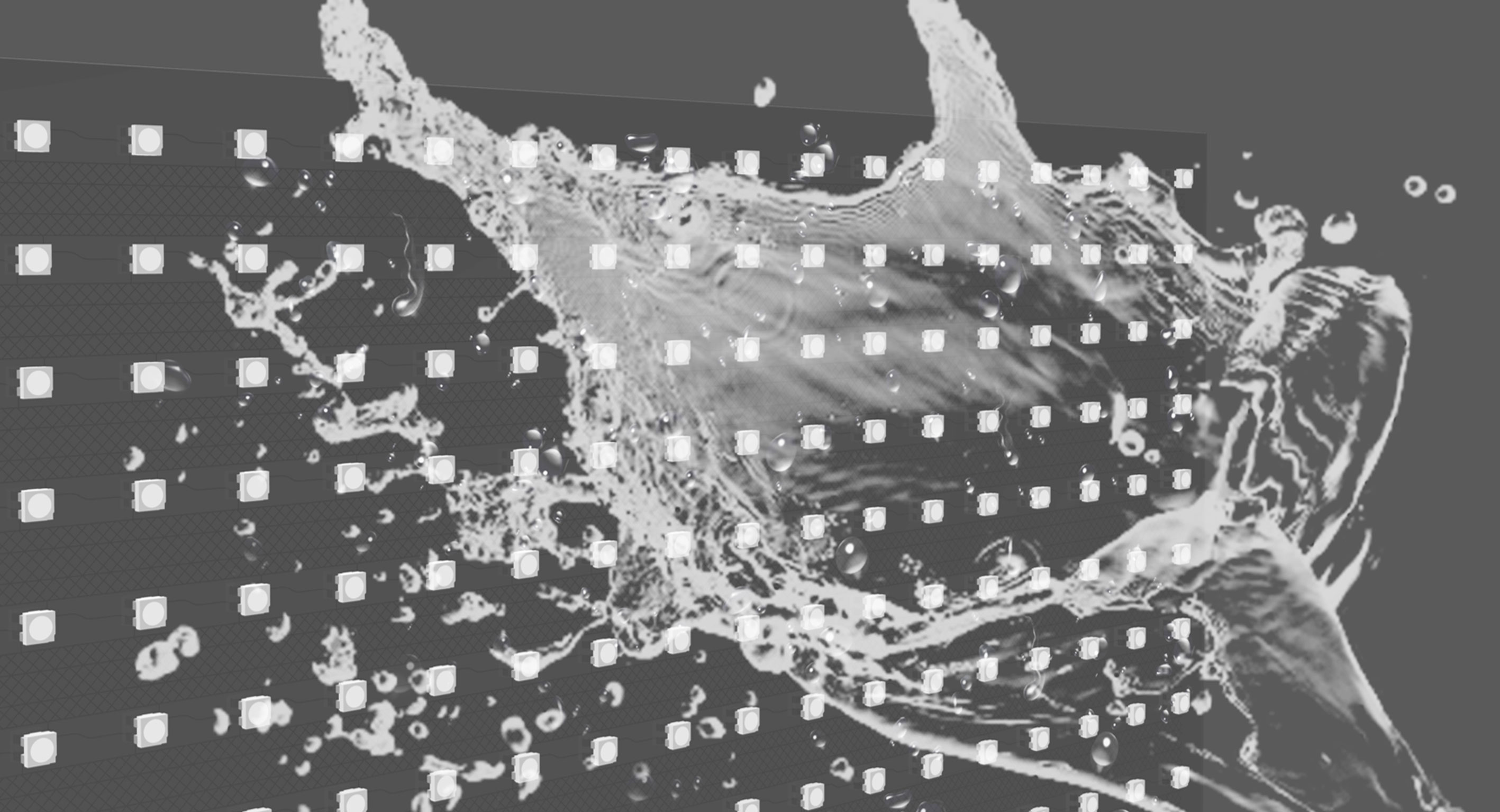

IP65
Outdoor products that stand up to the elements
Fully seals LED gaps to keep out dust and moisture, and resists heat and UV rays to extend life without yellowing.
Separate options
No visual stimuli
Block rear light leaks
Air Clear Film blocks 80% light from leaking out the sides and back, making the so there's not as much visual stimulation on the back.
Rear Light Leak Blocking Chip
General Chip
IP65
Enjoy outdoor TV
environments
Fully seals LED gaps to keep out dust and moisture, and resists heat and UV rays to extend life without yellowing.
Air Clear Film Indoor
Specification
| Product | Air Clear Film Indoor p8.3 | Air Clear Film Indoor p10.4 | Air Clear Film Indoor p15.4 | Air Clear Film Indoor p20.8 |
|---|---|---|---|---|
| Pixel pitch | 8.32 mm | 10.4 mm | 15.4 mm | 20.8 mm |
| Brightness | 1,000 ~ 2,500 nit | 1,000 ~ 2,400 nit | 1,000 nit | 600 nit |
| Film size | 832 x 249.6 mm | 832 x 249.6 mm | 832 x 249.6 mm | 832 x 249.6 mm |
| Film resolution | 100 x 30 px | 80 x 24 px | 54 x 16 px | 40 x 12 px |
| Thickness | 1.1 mm | 1.1 mm | 1.1 mm | 1.1 mm |
| Total thickness (Film + LED) | 1.288 mm | 1.288 mm | 1.288 mm | 1.288 mm |
| Viewing angle | 140° (H, V) | 140° (H, V) | 140° (H, V) | 140° (H, V) |
| Weight | 2 kg/sqm | 2 kg/sqm | 2 kg/sqm | 2 kg/sqm |
| IP rating | IP20 | IP20 | IP20 | IP20 |
| Working temperature | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C |
| Humidity | 10 ~ 90 % | 10 ~ 90 % | 10 ~ 90 RH % | 10 ~ 90 RH % |
| Power consumption | Max. 175│Avg. 59 w/sqm | Max. 175│Avg. 59 w/sqm | Max. 175│Avg. 59 w/sqm | Max. 98│Avg. 33 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit |
| LED type | SMD 2121 for Air | SMD 2121 for Air | SMD 2121 for Air | SMD 2121 for Air |
| Heat cycle test | Passed (80 °C) | Passed (80 °C) | Passed (80 °C) | Passed (80 °C) |
| Anti-back glare chip | Optional | Optional | Optional | Optional |
| Product | Air Clear Film Indoor p8.3 | Air Clear Film Indoor p10.4 | Air Clear Film Indoor p15.4 | Air Clear Film Indoor p20.8 |
|---|---|---|---|---|
| Pixel pitch | 8.32 mm | 10.4 mm | 15.4 mm | 20.8 mm |
| Brightness | 1,000 ~ 2,500 nit | 1,000 ~ 2,400 nit | 1,000 nit | 600 nit |
| Film size | 832 x 249.6 mm | 832 x 249.6 mm | 832 x 249.6 mm | 832 x 249.6 mm |
| Film resolution | 100 x 30 px | 80 x 24 px | 54 x 16 px | 40 x 12 px |
| Thickness | 1.1 mm | 1.1 mm | 1.1 mm | 1.1 mm |
| Total thickness (Film + LED) | 1.288 mm | 1.288 mm | 1.288 mm | 1.288 mm |
| Viewing angle | 140° (H, V) | 140° (H, V) | 140° (H, V) | 140° (H, V) |
| Weight | 2 kg/sqm | 2 kg/sqm | 2 kg/sqm | 2 kg/sqm |
| IP rating | IP20 | IP20 | IP20 | IP20 |
| Working temperature | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C |
| Humidity | 10 ~ 90 % | 10 ~ 90 % | 10 ~ 90 RH % | 10 ~ 90 RH % |
| Power consumption | Max. 175│Avg. 59 w/sqm | Max. 175│Avg. 59 w/sqm | Max. 175│Avg. 59 w/sqm | Max. 98│Avg. 33 w/sqm |
| Life span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grayscale | 22 bit | 22 bit | 22 bit | 22 bit |
| LED type | SMD 2121 for Air | SMD 2121 for Air | SMD 2121 for Air | SMD 2121 for Air |
| Heat cycle test | Passed (80 °C) | Passed (80 °C) | Passed (80 °C) | Passed (80 °C) |
| Anti-back glare chip | Optional | Optional | Optional | Optional |
All products are customizable, so please contact us if you would like to change the specs.
